HP ZBook 15u G5 Mobile Workstation
Industry-leading power and durability built to go

Overview:

Finally, workstation-class power meets thin and light design for executives on-the-go. With advanced features like quad core Intel Core™ processors and 3D professional graphics, you can view and edit high resolution files from anywhere.

Industry-leading power and durability built to go

• Windows 10 Pro 64
• 8th Generation Intel Core™ i5 processor
• 8 GB memory; 256 GB SSD storage
• 15.6" diagonal FHD IPS eDP anti-glare LED-backlit (1920 x 1080)
• Integrated Intel UHD Graphics 620 Discrete AMD Radeon™ Pro WX 3100 Graphics (2 GB GDDR5 dedicated)
• 1 smart card reader

Features:

Our thinnest and lightest 15" mobile workstation

Our redesigned ZBook has been customized for road warriors with a taste for sophistication at just 3.89 pounds and 18.6 mm thin. Designed with metallic finishes and an optional 4K, touch display , you'll get a premium experience that travels light.

Premium power. Pure performance.

Power through your day using everything from spreadsheets to CAD with blazing fast HP Z Turbo Drive high speed storage and certified AMD Radeon™ Pro graphics.

Advanced protection from the inside out.

Industry-leading security features help keep your files and privacy safe while traveling. Optional HP Sure View guards your screen from prying eyes and HP Sure Click protects web browsing with hardware-enforced security.

Featuring

• Be productive in any situation with the power and security of Windows 10 Pro, enhanced with best-in-class collaboration and connectivity features from HP.
• Work with professional, certified discrete graphics for rich visual immersion and real-time visualization of complex, multi-layered files and projects.
• Work at the speed of your ideas with the premium performance of the latest quad core Intel Core™ processors, and up to 4.2 GHz of turbo boost at your fingertips.
• HP mobile workstations undergo dozens of tests for software certification and optimized performance with the industry’s leading software providers like Autodesk, Adobe, and more.
• Work seamlessly on airplanes, trains or in cafes with a stunning optional 4K display, with antiglare technology that improves the outdoor and direct light experience.
• Easily connect and collaborate with Skype and other conferencing tools. Conference key shortcuts include start/end call, view calendar, mute, and screen sharing.
• Designed and passed to handle the toughest workloads, wherever you may roam. Tested for altitude, shock, drops, explosive atmospheres, extreme temperatures, sand, humidity and more.
• Work confidently from anywhere with up to 2TB of local PCIe storage that’s up to 6x faster than SATA SSD, and up to 21x faster than traditional HDD storage.
• Industry-leading audio by Bang & Olufsen and a discrete amp offer premium sound quality. Plus, an external mic for conference calls and muting background noise.
• No more taping over your Webcam. The privacy slider ensures you’re in control of who and what the camera sees.
• The HP ZBook Dock features Thunderbolt™ 3 connectivity for lightning-fast transfers, and the power to run dual 4K displays for maximum visual immersion.
• Enjoy peace of mind knowing you have up to 10 hours of battery life, with ultra-fast recharge for maximum productivity. Recharge to 50% capacity in just 30 minutes.

Specifications:

HP ZBook 15u G5 Mobile Workstation Specifications
Available Operating system	Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home 64 FreeDOS 2.0
Processor family	7th Generation Intel Core™ i5 processor (i5-7200U, i5-7300U); 7th Generation Intel Core™ i7 processor (i7-7500U, i7-7600U); 8th Generation Intel Core™ i7 processor (i7-8650U, i7-8550U); 8th Generation Intel Core™ i5 processor (i5-8350U, i5-8250U)
Available Processors	Intel Core™ i7-8650U with Intel UHD Graphics 620 (1.9 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) Intel Core™ i7-8550U with Intel UHD Graphics 620 (1.8 GHz base frequency, up to 4 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) Intel Core™ i7-7600U with Intel HD Graphics 620 (2.8 GHz base frequency, up to 3.9 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores) Intel Core™ i7-7500U with Intel HD Graphics 620 (2.7 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores) Intel Core™ i5-8350U with Intel UHD Graphics 620 (1.7 GHz base frequency, up to 3.6 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores) Intel Core™ i5-8250U with Intel UHD Graphics 620 (1.6 GHz base frequency, up to 3.4 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores) Intel Core™ i5-7300U with Intel HD Graphics 620 (2.6 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores) Intel Core™ i5-7200U with Intel HD Graphics 620 (2.5 GHz base frequency, up to 3.1 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores)
Maximum memory	32 GB DDR4-2400 non-ECC SDRAM Transfer rates up to 2133 MT/s.
Memory slots	2 SODIMM
Internal storage	up to 128 GB M.2 SATA SSD up to 512 GB M.2 SATA FIPS 140-2 SED SSD 256 GB up to 512 GB PCIe NVMe™ M.2 SED SSD 256 GB up to 2 TB PCIe NVMe™ M.2 SSD 256 GB up to 1 TB HP Z Turbo Drive G2 PCIe NVMe™ SSD
Display	15.6" diagonal FHD IPS eDP anti-glare, 67% sRGB at 220 nits (1920x1080); 15.6" diagonal FHD IPS eDP + PSR anti-glare, 100% sRGB at 400 nits with ambient light sensor (1920x1080); 15.6" diagonal UHD IPS eDP + PSR anti-glare, 100% sRGB at 400 nits with ambient light sensor (3840x 2160); 15.6" diagonal FHD IPS eDP touch screen with Corning Gorilla Glass 3, 67% sRGB at 220 nits (1920x1080); HP SureView Integrated Privacy Display (15.6") diagonal FHD IPS eDP + PSR anti-glare, 100% sRGB at 700 nits (1920x1080)
Available Graphics	Integrated: Intel HD Graphics 620; Intel UHD Graphics 620 Discrete: AMD Radeon™ Pro WX 3100 Graphics (2 GB GDDR5 dedicated)
Audio	HP tuned Bang & Olufsen, dual stereo speakers, HP World Facing Microphone dual array digital microphone, functions keys for volume up and down, combo microphone/headphone jack, HD audio
Keyboard	HP Collaboration Keyboard, spill-resistant, backlit and function key control; HP Dual Point spill-resistant Collaboration Keyboard
Pointing device	Dual pointstick; Clickpad with multi-touch gestures enabled, taps enabled as default; Microsoft Precision Touchpad Default Gestures Support
Communications	LAN: Integrated Intel I219-LM GbE, vPro™; Integrated Intel I219-V GbE, non-vPro™; WLAN: Intel Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 4.2 Combo, vPro™; Intel Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 4.2 Combo, non-vPro™; WWAN: HP lt4132 LTE/HSPA+ 4G Mobile Broadband Module; Intel XMM™ 7360 LTE Advanced (Optional Near Field Communication (NFC) module)
Expansion slots	1 smart card reader

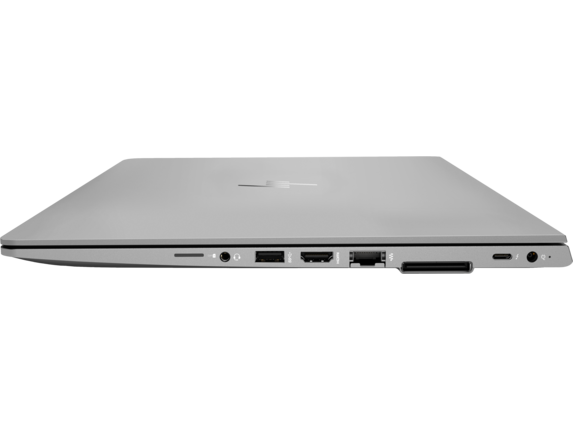

Ports and Connectors	Left side: 1 USB 3.0 (charging) Right side: 1 HDMI 1.4; 1 headphone/microphone combo; 1 power connector; 1 RJ-45; Ultra Slim Dock Connector; 1 USB Type-C™ (Thunderbolt™ 3, USB 3.1)
Camera	720p HD webcam with IR; 720p HD webcam
Available Software	Bing search for IE11; Buy Office; CyberLink Power Media Player; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HP Noise Cancellation Software; HP Performance Advisor; HP Recovery Manager; HP Remote Graphics Software; HP Secure Erase; HP Support Assistant; HP Velocity; Skype for Business Certified; HP LAN-WLAN Protection; HP JumpStart; HP Mobile Connect Pro; Native Miracast support; HP SureConnect; Windows Defender
Security management	Absolute persistence module; DriveLock and Automatic DriveLock; HP BIOSphere with Sure Start Gen3; HP Client Security Suite Gen 3; HP Device Access Manager; HP FingerPrint Sensor; HP Power On Authentication; HP Security Manager; Security lock slot; Master Boot Record security; Pre-boot authentication
Battery type	HP Long Life 3-cell, 56 Wh Li-ion polyme
Battery life	Up to 14 hours
Dimensions	14.6 x 9.91 x 0.72 in; 37.08 x 25.1 x 1.86 cm
Weight	Starting at 3.89 lb; Starting at 1.77 kg (Weight varies by configuration and components.)
Environmental	Low halogen
Energy efficiency compliance	ENERGY STAR certified and EPEAT Gold registered configurations available
Warranty	3 year or 1 year limited warranty options available, depending on country. Batteries have the same 1 year or 3 year limited warranty as the platform. 24/7 operation will not void the HP warranty. Optional HP Care Pack Services are extended service contracts which go beyond your standard limited warranties.

Image Gallery:

Documentation:

Download the HP ZBook 15u G5 Mobile Workstation Datasheet (.PDF)
