HP EliteBook 860 G11 Notebook PC
The enterprise notebook that’s anything but ordinary

Overview:

Equip your high-producing teams with the PC that delivers the power of the latest Intel processor , HP Wolf Security, and intuitive collaboration tools they need for working in the office orin a hybrid setting. The HP EliteBook 860 effectively meets the demands of multi-tasking teams across the globe.

Help protect our shared future

This PC contains at least 75-percent post-consumerrecycled plastic in the bezel and provides power data tracking and suggestions to reduce energy use representing the latest in responsible design from HP.

Features:

HP Recommends Windows 11 Pro for business
Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology.

Powerful Intel processor
Help speed up demanding business applications with the latest generation Intel Core processor.

HP Smart Sense
Enjoy long battery life managed by AI and HP Smart Sense that adapts to power needs. The PC will switch to performance mode when you need the most power and back to comfort mode that helps keep your pc cool and quiet during simple tasks.

Easy battery management
Manage and monitor your battery’s performance and condition and customize charging options with the easy-to-use HP Power Manager dashboard.

Balanced light for a clear image
Make sure you can clearly be seen on calls with Dynamic Color Tuning that adjusts camera auto-color and auto-white balance for a more natural color when you are in front of a monochromatic background.

Hear and be heard
Dynamic Voice Leveling automatically optimizes voice clarity within 3-meters of the PC. AI Noise Reduction uses noise-filtering technology to enhance audio conferencing experiences.

Believing is seeing
Get captivating definition and color on the optional 14-inch diagonal QHD display.

Automatic framing
Move around a little without losing viewers’ attention during video calls with optional automatic framing. The optional 5MP IR camera and audio follow you or multiple presenters as they move within the camera’s frame.

See colors as they should be
Make the color of your screen look consistent in any light with Adaptive Color that adjusts your display automatically to the ambient light in the room to represent the true color of the content being displayed.

Comfortable viewing
Optional TÜV certified HP Eye Ease low blue light anti-glare panels help remove blue light waves while preserving vivid color accuracy.

Stay connected
Your“office” can be where you need it, letting you connect almost anywhere with optional support for up to 5G wireless broadband technology with 4x4 antennas that can deliverfast download and upload speeds.

Fast and efficient wireless LAN
The portability of your PC and the reliability of a fast connection determines where you can work. Get a fast and reliable connection in dense wireless environments with gigabit data rate Wi-Fi 6E.

Work longer,Charge faster.
Long battery life gets you through a day of meetings without plugging in. Quickly recharge your PC with HP Fast Charge. You’ll get up to 50% battery life in just 30 minutes of charging.

Technical Specifications:

HP EliteBook 860 16 inch G11 Notebook PC
Available Operating Systems	Windows 11 Pro1 Windows 11 Pro Education1 Windows 11 Home – HP recommends1 Windows 11 Pro for business1 Windows 11 Home Single Language – HP recommends1 Windows 11 Pro for business1 Windows 11 Pro (Windows 11 Enterprise or Windows 10 Enterprise available with a Volume Licensing Agreement)1 FreeDOS
Processor Family	Intel® Core™ Ultra 5 processor Intel® Core™ Ultra 7 processor
Available Processors2,3,4,35	Intel® Core™ Ultra 7 155H (up to 3.8 GHz E-core Max Turbo frequency, up to 4.8 GHz P-core Max Turbo frequency, 24 MB L3 cache, 6 P-cores and 8 E-cores, 22 threads) Intel® Core™ Ultra 5 125H (up to 3.6 GHz E-core Max Turbo frequency, up to 4.5 GHz P-core Max Turbo frequency,18 MB L3 cache, 4 P-cores and 8 E-cores,18 threads) Intel® Core™ Ultra 7 165H (up to 3.8 GHz E-core Max Turbo frequency, up to 5.0 GHz P-core Max Turbo frequency, 24 MB L3 cache, 6 P-cores and 8 E-cores, 22 threads) Intel® Core™ Ultra 7 165U (up to 3.8 GHz E-core Max Turbo frequency, up to 4.9 GHz P-core Max Turbo frequency,12 MB L3 cache, 2 P-cores and 8 E-cores,14 threads) Intel® Core™ Ultra 7 155U (up to 3.8 GHz E-core Max Turbo frequency, up to 4.8 GHz P-core Max Turbo frequency,12 MB L3 cache, 2 P-cores and 8 E-cores,14 threads) Intel® Core™ Ultra 5 135H (up to 3.6 GHz E-core Max Turbo frequency, up to 4.6 GHz P-core Max Turbo frequency,18 MB L3 cache, 4 P-cores and 8 E-cores,18 threads) Intel® Core™ Ultra 5 135U (up to 3.6 GHz E-core Max Turbo frequency, up to 4.4 GHz P-core Max Turbo frequency,12 MB L3 cache, 2 P-cores and 8 E-cores,14 threads) Intel® Core™ Ultra 5 125U (up to 3.6 GHz E-core Max Turbo frequency, up to 4.3 GHz P-core Max Turbo frequency,12 MB L3 cache, 2 P-cores and 8 E-cores,14 threads)
Maximum Memory	64 GB DDR5-5600 MHz RAM; (Transferrates up to 5600 MT/s.) Dual channel support.5
Memory slots	2 SODIMM
Internal storage	512 GB up to 2 TB PCIe® Gen4x4 NVMe™ M.2 SSDTLC6 256 GB up to 1 TB PCIe® NVMe™ Value SSD6 up to 512 GB PCIe® Gen4x4 NVMe™ M.2 SED SSDTLC6 up to 256 GB PCIe® NVMe™ M.2 SED SSD6
Display size (diagonal, metric)	40.6 cm (16")
Display	16" diagonal, WUXGA (1920 x 1200), IPS, anti-glare,1000 nits,100% sRGB, HP Sure View Reflect integrated privacy screen; 16" diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 400 nits, low power,100% sRGB; 16" diagonal, 2.8K (2880 x 1200), BrightView, 400 nits, low power,100% sRGB; 16" diagonal, WUXGA (1920 x 1200), touch, IPS, anti-glare, 300 nits, 45% NTSC; 16" diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 300 nits, 45% NTSC 15,16,17,18,19 40.6 cm (16") diagonal, WUXGA (1920 x 1200), IPS, anti-glare,1000 nits,100% sRGB, HP Sure View Reflect integrated privacy screen; 40.6 cm (16") diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 400 nits, low power,100% sRGB; 40.6 cm (16") diagonal, 2.8K (2880 x 1200), BrightView, 400 nits, low power,100% sRGB; 40.6 cm (16") diagonal, WUXGA (1920 x 1200), touch, IPS, anti-glare, 300 nits, 45% NTSC; 40.6 cm (16") diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 300 nits, 45% NTSC 15,16,17,18,19
Available Graphics	Integrated: Intel® Arc™ Graphics; Intel® Graphics (Support HD decode, DX12, HDMI 2.1.)41
Audio	Audio by Poly Studio, dual stereo speakers with discrete amplifiers, integrated dual array microphones
Wireless Technologies	Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card, vPro®; Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card, non-vPro®; Intel® Wi-Fi 7 BE200 (2x2) and Bluetooth® 5.4 wireless card, vPro®; Intel® Wi-Fi 7 BE200 (2x2) and Bluetooth® 5.4 wireless card, non-vPro7 (Compatible with Miracast-certified devices.)8 Near Field Communication (NFC) module

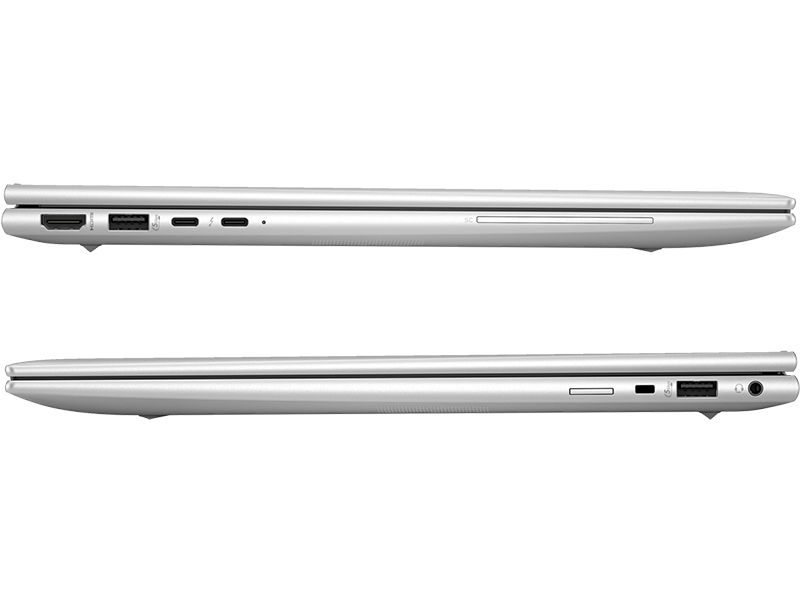

Ports and Connectors	2 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4); 2 USB Type-A 5Gbps signaling rate (1 charging,1 power); 1 HDMI 2.1; 1 stereo headphone/microphone combo jack11 ; (HDMI cable sold separately.); Optional Ports: 1 External Nano SIM slot for WWAN12
Input devices	HP Premium Keyboard – spill-resistant with optional backlit keyboard and Durakeys13 ; Clickpad with multi-touch gesture support, taps enabled as default; Microsoft Precision Touchpad; Hall Sensor; Thermal sensor; Adaptive color sensor; HP Tamper Lock42 ; Ambient light sensor
Communications	Qualcomm® 9205 LTE Cat-M1; HP 4000 4G LTE Advanced Pro; HP 5000 5G Solution9,10,44
Camera	5 MP camera; IR Camera (select models)14
Software	Adobe offer; Bing Search forIE11; Microsoft 365 and Office (sold separately and Internet access required for activation); HPConnection Optimizer; HP Easy Clean; HP Easy Clean Keyboard Driver; HP Hotkey Support; HP MACAddress Manager; HP Notifications; HP PC Hardware Diagnostics UEFI; HP PC Hardware Diagnostics Windows; HP Power Manager; HP Smart Support ; HP Privacy Settings; HP Support Assistant ; HSA Fusion forCommercial; HP Services Scan ; Copilot in Windows with Copilot key20,21,42,51
Security management	HPClient Security Manager; HP Sure Admin ; HP Sure Click ; HP Sure Recover Gen6 ; HP Sure Run Gen5 ; HP Sure Sense ; HP Sure Start Gen7; HP Tamper Lock ; Secured-Core PC Enable ; Windows Hello Enhanced SIgn-in Security (ESS) Enable; Absolute persistence module ; BIOS Update via Network; HP BIOSphere Gen6 ; HP DriveLock and Automatic DriveLock; Secure Erase ; HP Wake on WLAN; Security lock slot25,26,27,28,29,30,31,32,33,41,43
Security Software Licenses	HP Wolf Pro Security Edition50
Fingerprint reader	Fingerprint sensor(select models)
Management features	HPClient Catalog (download) HPCloud Recovery HPConnect for Microsoft Endpoint Manager HPClient Management Script Library (download) HP Driver Packs (download) HP Image Assistant (download) HP Manageability Integration Kit (download) HP Patch Assistant (download)22,23,24
Power	HP 65 W USB Type-C® slim adapter; 65 W USB Type-C® adapter; HP 100 W USB Type-C® slim adapter38
Battery type	HP Long Life 6-cell, 76 Wh polymer; HP Long Life 3-cell, 56 Wh Li-ion polymer;37 Battery is internal and not replaceable by customer. Serviceable by warranty. Fast charging 50% in 30 minutes.36
Dimensions	12.42 x 8.83 x 0.45 in (front); 12.42 x 8.83 x 0.63 in (rear); 31.56 x 22.43 x 1.16 cm (front); 31.56 x 22.43 x 1.61 cm (rear); (Front height measurement is nearthe front edge where the chassis bottom covertaper begins. Back height measurement is nearthe back edge where the chassis bottom covertaper ends.)
Weight	Starting at 3.78 lb; Starting at 1.71 kg; (Weight will vary by configuration. Does not include power adapter.)
Ecolabels	EPEAT® registered configurations available; TCO Certified configurations available; EPEAT® Gold registered in the U.S39
Energy star certified (series fixed)	ENERGY STAR® certified
Certification and compliance	GS Mark; CSA/UL 62368-1; FCC/ICES/CISPR/VCCI; CE Marking; China CCC/SRRC; Taiwan BSMI/NCC; Korea KCC/KC/KES; Ukraine NSoC/TEC; EAEU Compliance; Saudi Arabian Compliance; Low blue light; WW RoHS
Sustainable impact specifications	Low halogen; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 60% post-consumerrecycled plastic; Ocean-bound plastic in speaker enclosure(s); 65% recycled metal40,46,47,48,49
Warranty	1-year warranty and 90 day software limited warranty options depending on country. Batteries have a default one yearlimited warranty except for HP Long Life batteries which will follow the one orthree year warranty of the platform. Referto http://www.hp.com/support/batterywarranty/ for additional battery information. On-site service and extended coverage is also available. HPCare Pack Services are optional extended service contracts that go beyond the standard limited warranties. To choose the right level of service for your HP product, use the HPCare Pack Services

Note:

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows is automatically updated and enabled.
2. High speed internet and Microsoft account required. ISP fees may apply and additional requirements may apply overtime for updates. See http://www.windows.com .
3. Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
4. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.
5. Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. See www.intel.com/technology/turboboost for more information.
6. Features and software that require a NPU may require may require software purchase, subscription or enablement by a software or platform provider, and third party software may have specific configuration or compatibility requirements. Performance varies by use, configuration, and otherfactors.
7. Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
8. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB of disk is reserved for system recovery software.
9. Wi-Fi 6E requires a Wi-Fi 6E router, and Windows 11, to function in the 6GHz band. Availability of public wireless access points limited. Wi-Fi 6E is backwards compatible with prior 802.11 specs. And available in countries where Wi-Fi 6E is supported.
10. 5G module is optional and must be configured at the factory. Module designed for 5G NR NSA (non-standalone) networks as carriers deploy Evolved-Universal Terrestrial Radio Access New Radio Dual Connectivity (ENDC) with both 100Mhz of 5G NR and LTE channel bandwidth, using 256QAM 4x4 as defined by 3GPP. Module requires activation and separately purchased service contract.Check with service providerfor coverage and availability in your area. Data connection, upload and download speeds will vary due to network, location, environment, network conditions, and otherfactors. Backwards compatible to 4G LTE and 3G HSPA technologies. 5G module planned to be available in select platforms and select countries, where carrier supported.
11. USB 20Gbps speed is not available with Thunderbolt™ 4.
12. SIM slot is not user accessible without WWAN configuration.
13. Backlit keyboard is an optional feature.
14. Sold separately or as an optional feature.
15. WUXGA content required to view WUXGA images.
16. Resolutions are dependent upon monitor capability, and resolution and color depth settings.
17. HP Sure View Reflect integrated privacy screen is an optional feature that must be configured at purchase and is designed to function in landscape orientation.
18. Actual brightness will be lower with touchscreen or Sure View.
19. All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher orlower.
20. HP Services Scan is provided with Windows Update on select products and will check entitlement on each hardware device to determine if an HP TechPulse-enabled service has been purchased, and will download applicable software automatically. HP TechPulse is a telemetry and analytics platform that provides critical data around devices and applications. Forfull system requirements orto disable this feature, please visit http://www.hpdaas.com/requirements . Not applicable in China.
21. HP Support Assistant requires Windows and Internet access.
22. HP Cloud Recovery is available for Z by HP, HP Elite and Pro desktops and laptops PCs with Intel® or AMD processors and requires an open, wired network connection. Note: You must back up important files, data, photos, videos, etc. before use to avoid loss of data. Detail please referto: https://support.hp.com/us-en/document/c05115630 .
23. HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement .
24. HP Patch Assistant available on select HP PCs with the HP Manageability Kit that are managed through Microsoft System CenterConfiguration Manager. HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html .
25. HP Sure Admin requires HP G8 or newer platforms, Windows 10 or higher, HP BIOS, HP Manageability Kit or KMS Service from http://www.hp.com/go/clientmanagement and HP Sure Admin Local Access Authenticator smartphone app from the Android or Apple store.
26. HP Sure Click requires Windows 10 and higher. See https://bit.ly/2PrLT6A_SureClick for complete details.
27. HP Sure Recover Gen6 is available on select HP PCs and requires Windows 10 or11 and an open network connection. You must back up important files, data, photos, videos, etc. before using HP Sure Recoverto avoid loss of data. HP Sure Recover Gen6 with Embedded Reimaging is an optional feature on select HP PCs which requires Windows 10 or11 must be configured at purchase. You must back up important files, data, photos, videos, etc. before use to avoid loss of data.
28. HP Sure Run Gen5 is available on select HP PCs and requires Windows 10 and higher.
29. HP Sure Sense requires Windows 10 and higher. See product specifications for availability. On units with WWAN shipping to China, HP Sure Sense is only available via Softpaq download.
30. Secured-Core PC Enable requires an Intel® vPro® , AMD Ryzen™ Pro processor or Qualcomm® processor with SD850 or higher and requires 8 GB or more system memory. Secured-core PC is enabled from the factory.
31. Absolute firmware module is shipped turned off and can only be activated with the purchase a license subscription and full activation of the software agent. License subscriptions can be purchased forterms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S.Certain conditions apply. Forfull details visit: https://www.absolute.com/about/legal/agreements/absolute/
32. HP BIOSphere Gen6 features may vary depending on the platform and configuration.
33. HP Secure Erase implements the methods outlined in the National Institute of Standards and Technology Special Publication 800-88r"Clear" sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.
34. HP Fingerprint Sensoris an optional feature and requires configuration at purchase.
35. Features and software that require a NPU may require may require software purchase, subscription or enablement by a software or platform provider, and third party software may have specific configuration or compatibility requirements. Performance varies by use, configuration, and otherfactors.
36. Recharges your battery up to 50% within 30 minutes when the system is off orin standby mode. Power adapter with a minimum capacity of 65 watts is required. After charging has reached 50% capacity, charging will return to normal.Charging time may vary +/-10% due to System tolerance.
37. Actual battery Watt-hours (Wh) will vary from design capacity. Battery capacity will naturally decrease with shelf life, time, usage, environment, temperature, system configuration, loaded apps, features, power management settings and otherfactors.
38. Availability may vary by country.
39. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information.
40. External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
41. Intel® Graphics capabilities require system to be configured with Intel® Core™ Ultra 5 or Ultra 7 processors and dual channel memory. Single channel memory will only function as Intel® ARC graphics.
42. HP Tamper Lock must be enabled by the customer or your administrator.
43. Lock is sold separately.
44. LPWAN (also called Mobile Narrowband) support HP Protect & Trace with Wolf Connect service through the subscription term, but do not support mobile broadband use.
45. Requires Windows 11 and an NPU. Timing of feature delivery and availability varies by market and device. Requires Microsoft account to log in. Where Microsoft in Windows is not available, the Copilot key will lead to the Bing search engine. See http://aka.ms/WindowsAIFeatures .
46. Molded pulp cushions made from 100% recycled wood fiber and organic materials.
47. Percentage of ocean-bound plastic contained in each component varies by product.
48. 100% outer box packaging and corrugated cushions made from sustainably sourced certified and recycled fibers.
49. Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
50. HP Wolf Pro Security Edition (including HP Sure Click Pro and HP Sure Sense Pro) is available preloaded on select SKUs and, depending on the HP product purchased, includes a paid 1-year or 3-yearlicense. The HP Wolf Pro Security Edition software is licensed underthe license terms of the HP Wolf Security Software - End-Userlicense Agreement (EULA) that can be found at: https://support.hp.com/us-en/document/ish_3875769-3873014-16 as that EULA is modified by the following: “7. Term. Unless otherwise terminated earlier pursuant to the terms contained in this EULA, the license forthe HP Wolf Pro Security Edition (HP Sure Sense Pro and HP Sure Click Pro) is effective upon activation and will continue for either a twelve (12) month orthirty-six (36) month license term (“Initial Term”). At the end of the Initial Term you may either(a) purchase a renewal license forthe HP Wolf Pro Security Edition from HP.com, HP Sales or an HPChannel Partner, or(b) continue using the standard versions of HP Sure Click and HP Sure Sense at no additional cost with no future software updates or HP Support.
51. HP Smart Support automatically collects the telemetry necessary upon initial boot of the product to deliver device-level configuration data and health insights and is available preinstalled on select products, thru HP Factory Configuration Services; orit can be downloaded. For more information about how to enable HP Smart Support orfor download, please visit http://www.hp.com/smart-support .

Image Gallery:

Documentation:

Download the HP EliteBook 860 16 inch G11 Notebook PC Datasheet (.PDF)
