HP EliteDesk 800 G4 Tower PC
Raise the bar for performance, security, and manageability

Overview:

Powered for the enterprise, the high-performance HP EliteDesk 800 TWR is one of our most secure and manageable PCs featuring superb expandability required by today’s high-productivity workforce in a stylish chassis designed for the modern workplace.

Raise the bar for performance, security, and manageability

• Windows 10 Pro
• HP Sure Start Gen

Features:

Ready for virtul reality

High-performance users will enjoy massive expansion, 8th Gen Intel Core processors, and Intel Optane memory. Amplify performance with optional 95W processors, Thunderbolt, and high-end discrete graphics for viewing VR content.

Expansion that expands your investment

The HP EliteDesk 800 TWR has enormous expandability with five bays and four full-height slots including one slot for full-length double-wide graphics. Plus, three additional M.2 slots, and plenty of configurable ports.

Strong security, powerful manageability

Get powerful protection and simplified management from secure and manageable PCs. HP Sure Start Gen4 protects against BIOS attacks while the HP Manageability Integration Kit Gen2 allows you to easily manage devices.

Configurable ports for displays or Thunderbolt

Configure a third configurable rear I/O port for customizable display connections with your choice of VGA, DisplayPort, HDMI or USB-Type C with DisplayPort. Or, choose Thunderbolt for high-speed file transfer.

Featuring

• Power through your day with Windows 10 Pro with built-in security, collaboration, and connectivity.
• Protect the firmware that antivirus can’t reach! The hardware-enforced selfhealing protection offered by HP Sure Start Gen4 automatically recovers the BIOS from malware, rootkits, or corruption.
• Keep your critical applications and processes running even if malware tries to shut them down with self-healing protection.
• Help protect your PC from websites and in-browser .pdf files infected with malware, ransomware, or viruses with HP Sure Click.
• Quickly and securely restore PCs to the latest image using a network connection with HP Sure Recover.
• ITDMs can quickly help create, improve, and secure custom Windows images with HP Image Assistant Gen3.
• The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.
• Fortify your security with up to three authentication factors.

Specifications:

HP EliteDesk 800 G4 Workstation Edition Specifications
Operating system	Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home Single Language 64 Windows 10 Home 64 FreeDOS 2.0
Processor Family	8th Generation Intel Core i3 processor (i3-8100, i3-8300); 8th Generation Intel Core i7 processor (i7-8700, i7-8700K); 8th Generation Intel Core i5+ processor (i5-8500, i5-8600, I5-8600K); 8th Generation Intel Core i7+ processor (i7-8700, i7-8700K); Intel Pentium processor (G5400, G5500 are Windows 10 only)
Processors	Intel Core™ i7-8700 with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with IntelTurbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i3-8100 with IntelUHD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores) Intel Core™ i7-8700K with IntelUHD Graphics 630 (3.7 GHz base frequency, up to 4.7 GHz with IntelTurbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i5-8600K with Intel UHD Graphics 630 (3.6 GHz base frequency, up to 4.3 GHz with IntelTurbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5-8500 with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with IntelTurbo Boost Technology, 9 MB cache, 6 cores) Intel Pentium Gold G5400 with IntelUHD Graphics 610 (3.7 GHz, 4 MB cache, 2 cores) Intel Core™ i5-8600 with IntelUHD Graphics 630 (3.1 GHz base frequency, up to 4.3 GHz with IntelTurbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i3-8300 with Intel UHD Graphics 630 (3.7 GHz, 8 MB cache, 4 cores) Intel Pentium Gold G5500 with IntelUHD Graphics 630 (3.8 GHz, 4 MB cache, 2 cores) Intel Core™ i7+ 8700 (Core™ i7 and 16 GB Intel Optane™ memory) (3.2 GHz base frequency, up to 4.6 GHz with IntelTurbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i5+ 8600 (Core™ i5 and 16 GB Intel Optane™ memory) (3.1 GHz base frequency, up to 4.3 GHz with IntelTurbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5+ 8500 (Core™ i5 and 16 GB Intel Optane™ memory) (3 GHz base frequency, up to 4.1 GHz with IntelTurbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5+ 8600K (Core™ i5 and 16 GB Intel Optane™ memory) (3.6 GHz base frequency, up to 4.3 GHz with IntelTurbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i7+ 8700K (Core™ i7 and 16 GB IntelOptane™ memory) (3.7 GHz base frequency, up to 4.7 GHz with IntelTurbo Boost Technology, 12 MB cache, 6 cores)
Chipset	Intel Q370
Form Factor	Tower
Maximum Memory	128 GB DDR4-2666 SDRAM Transfer rates up to 2666 MT/s.
Memory slots	4 DIMM
Internal Storage	500 GB up to 2 TB 7200 rpm SATA 2 TB 5400 rpm SATA 500 GB SATA SED Opal 2 HDD 500 GB 7200 rpm SATA FIPS SED 256 GB up to 512 GB SATA SED Opal 2 TLC SSD 256 GB up to 512 GB SATA FIPS SSD 128 GB up to 512 GB PCIe NVMe™ M.2 SSD 128 GB up to 1 TB PCIe NVMe™ TLC M.2 SSD 256 GB up to 512 GB PCIe NVMe™ SED Opal 2 TLC M.2 SSD
Optical drive	HP 9.5 mm Slim DVD-Writer
Available Graphics	Integrated: Intel UHD Graphics 630; Intel UHD Graphics 610 Discrete: NVIDIA GeForce GTX 1060 (3 GB GDDR5 dedicated); AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated); AMD Radeon™ RX 580 Graphics (4 GB GDDR5 dedicated)
Audio	Conexant CX20632 codec, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable
Expansion Slots	1 M.2 2230; 2 M.2 2230/2280; 1 PCIe 3.0 x16; 1 PCIe 3.0 x16 (wired as x4); 2 PCIe 3.0 x1 (1 M.2 slot for WLAN and 2 M.2 2230/2280 slot for storage.)

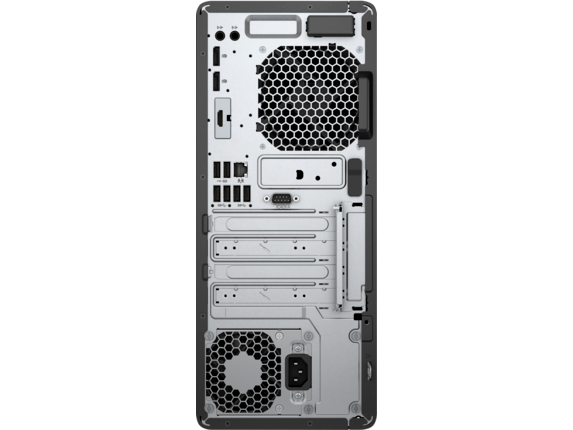

Ports and Connectors	Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 2 DisplayPort™ 1.2; 2 USB 2.0; 2 USB 3.1 Gen 1; 2 USB 3.1 Gen 2 Front: 1 headphone; 1 headset connector; 1 USB 2.0; 1 USB 2.0 (fast charging); 1 USB 3.1 Type-C™ (charging); 2 USB 3.1 Gen 2 Optional: 1 DisplayPort™ 1.2; 1 HDMI 2.0; 1 serial; 1 USB 3.1 Type-C™ Gen 1 (DisplayPort™); 1 VGA
Input devices	HP Conferencing Keyboard; HP PS/2 Business Slim Keyboard; HP PS/2 Keyboard; HP USB and PS/2 Washable Keyboard; HP USB Business Slim Keyboard; HP USB Keyboard; HP USB Smart Card (CCID) Keyboard; HP Wireless Business Slim Keyboard and Mouse Combo; HP Wireless Collaboration Keyboard ; HP PS/2 Mouse; HP USB 1000 dpi Laser Mouse; HP USB and PS/2 Washable Mouse; HP USB Antimicrobial Mouse; HP USB Hardened Mouse; HP USB Optical Mouse; HP USB Premium Mouse
Communications	LAN: Integrated Intel I219LM GbE LOM Intel I210-T1 PCIe GbE ; WLAN: Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2, non-vPro™ Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2, vPro™
Drive Bays	1 slim ODD; One 5.25" ODD; One 2.5" HDD; Two 3.5" HDD
Environmental	Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH
Available Software	Absolute Persistence module; HP Hotkey Support; HP Noise Cancellation Software; HP Support Assistant; Native Miracast Support; HP Wireless Wakeup; Buy Office (sold separately); HP Sure Recover; HP JumpStarts
Security management	DriveLock; HP BIOSphere; HP Password Manager; HP Power On Authentication; Intel® Identity Protection Technology (Intel® IPT); Power-on password (via BIOS); RAID configurations; Removable media write/boot control; SATA port disablement (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; USB enable/disable (via BIOS); Solenoid lock and hood sensor; HP Client Security Suite Gen 4; HP Sure Start Gen 4; HP Sure Run; Parallel enable/disable (via BIOS); Serial enable/disable (via BIOS); Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified)
Management features	HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); Ivanti Management Suite; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2
Power	250 W internal power supply, up to 92% efficiency, active PFC; 500 W internal power supply, up to 90% efficiency, active PFC
Pointing device	HP USB Optical Mouse
Keyboard	HP USB Business Slim Keyboard
Dimensions (W X D X H)	6.69 x 10.79 x 13.3 in
Weight	Starting at 15.74 lb
Warranty	3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Image Gallery:

Documentation:

Download the HP EliteDesk 800 Tower PC Datasheet (.PDF)
