HP EliteDesk 800 G4 23.8-inch Healthcare Edition All-in-One Business PC
Powered for the healthcare

Overview:

Optimize clinical workflows with the HP EliteOne 800 G4 23.8 Healthcare Edition All-in-One PC. It’s engineered for easy, repeatable sanitization2 and enhanced with optional integrated authentication3 features and collaboration3 tools for telemedicine.

Powered for the healthcare

• Windows 10 Pro
• 23.8" diagonal screen

Features:

Promote patient safety

Be ready for the next patient or user with our first AiO that is sanitizable with germicidal wipes every shift, every day, and certified to meet EN/IEC 60601-1-2 technical standards for safety and performance.

Simplify daily tasks with a smart design

Free yourself from external tethered devices with an AiO that has an optional integrated dual-band RFID reader3 and FIPS-201 compliant fingerprint reader3 for single sign-on. Collaborate easily with a PC that is Skype for Business certified.

Security where it matters most

When patient data security is integral to your business, you want our most secure and manageable AiO for healthcare with HP Sure Start Gen47, HP Manageability Integration Kit8, and robust HP multi-factor authentication options.

Featuring

• Be productive in any situation and power through your day with Windows 10 Pro and powerful security, collaboration, and connectivity features from HP.
• Get a PC driven by the HP Elite-class combination of 8th Gen Intel Core™ processors, and optional Intel vPro™ and Intel Optane™ memory.
• Create an optimal, collaborative telemedicine experience with an AiO that has a 23.8" diagonal FHD display, optional pop-up, dual-facing FHD camera, and enriched audio and is Vidyo Ready.
• Save time electronically prescribing medications with the optional FIPS 201-compliant fingerprint reader, or logging in with the optional IR camera and Windows Hello.
• Easily and securely log in with a simple badge tap on the HP EliteOne 800 G4 23.8 Healthcare Edition All-in-One PC with integrated support for Imprivata and Healthcast.
• Make the most of your workspace with the optional sleek, white, IP 65-rated HP USB Keyboard and Mouse Healthcare Edition, which simplify patient data entry and are easy to keep clean.
• Keep your critical OS processes running, even if malware tries to shut them down with self-healing protection.

Specifications:

HP EliteOne 800 G4 23.8-inch Healthcare Edition All-in-One PC Specifications
Operating system	Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Pro 64 (National Academic only) Windows 10 Home 64 Windows 10 Home Single Language 64 FreeDOS 2.0
Processor Family	8th Generation Intel Core™ i3 processor (i3-8100, i3-8300) 8th Generation Intel Core™ i5 processor (i5-8500, i5-8600) 8th Generation Intel Core™ i5+ processor 8th Generation Intel Core™ i7 processor (i7-8700) 8th Generation Intel Core™ i7+ processor Intel Celeron processor (G4900 is Windows 10 only) Intel Pentium processor (G5400, G5500, G5600 are Windows 10 only)
Processors	Intel Celeron G4900 with Intel UHD Graphics 610 (3.1 GHz, 2 MB cache, 2 cores) Intel Core™ i3-8100 with Intel UHD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores) Intel Core™ i3-8300 with Intel UHD Graphics 630 (3.7 GHz, 8 MB cache, 4 cores) Intel Core™ i5+ 8500 (Core™ i5 and 16 GB Intel Optane™ memory) (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5+ 8600 (Core™ i5 and 16 GB Intel Optane™ memory) (3.1 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5-8500 vPro™ processor with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5-8600 vPro™ processor with Intel UHD Graphics 630 (3.1 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i7+ 8700 (Core™ i7 and 16 GB Intel Optane™ memory) (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i7-8700 vPro™ processor with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Pentium Gold G5400 with Intel UHD Graphics 610 (3.7 GHz, 4 MB cache, 2 cores) Intel Pentium Gold G5500 with Intel UHD Graphics 630 (3.8 GHz, 4 MB cache, 2 cores) Intel Pentium Gold G5600 with Intel UHD Graphics 630 (3.9 GHz, 4 MB cache, 2 cores)
Chipset	Intel Q370
Form Factor	All-in-one
Maximum Memory	32 GB DDR4-2666 SDRAM (Transfer rates up to 2666 MT/s.)
Memory slots	2 SODIMM
Internal Storage	500 GB up to 1 TB 7200 rpm SATA 500 GB up to 2 TB 5400 rpm SATA HDD 2 TB 5400 rpm SATA 500 GB SATA SED Opal 2 SSD 128 GB up to 512 GB SATA SSD 256 GB up to 512 GB SATA SED FIPS 140-2 128 GB up to 1 TB PCIe NVMe™ SSD 256 GB PCIe NVMe™ SED
Optical drive	HP Optical Drive
Display	23.8" diagonal FHD IPS widescreen WLED-backlit glass covered (1920 x 1080) 60.45 cm (23.8") diagonal FHD IPS widescreen WLED-backlit glass covered (1920 x 1080)
Available Graphics	Integrated: Intel UHD Graphics 630; Intel UHD Graphics 610
Audio	Conexant CX5001 codec, 2 W internal speaker, HD audio
Keyboard	HP USB Business Slim Keyboard; HP USB Conferencing Keyboard; HP USB Grey Business Slim Keyboard; HP USB Healthcare Edition Keyboard and Mouse Combo; HP USB Keyboard and Mouse Combo; HP USB PS/2 Washable Keyboard; HP USB Wired Keyboard; HP Wireless Business Slim Keyboard and Mouse Combo; HP Wireless Premium Keyboard and Mouse Combo; HP USB Collaboration Wired Keyboard; HP Wireless Collaboration Keyboard; HP USB Business Slim Antimicrobial Keyboard; HP USB Business Slim Smart Card (CCID) Keyboard
Pointing Device	HP Grey V2 Mouse; HP USB 1000 dpi Laser Mouse; HP USB and PS/2 Washable Mouse; HP USB Antimicrobial Mouse; HP USB Hardened Mouse; HP USB Mouse; HP USB Optical Mouse
Communications	LAN: Integrated Intel I219LM GbE LOM WLAN: Realtek RTL8822BE-CG 802.11a/b/g/n/ac (2x2) with Bluetooth 4.1 M.2 PCIe; Realtek 802.11a/b/g/n/ac (1x1) and Bluetooth 4.2 Combo; Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2, non-vPro™; Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2, vPro™
Expansion Slots	1 M.2 2230; 2 M.2 2230/2280
Ports and Connectors	Rear: 1 audio-out; 1 DisplayPort™ 1.2; 1 HDMI; 1 power connector; 1 RJ-45; 1 USB 3.1 Type-C™; 2 USB 3.1 Gen 1; 4 USB 3.1 Gen 2 Optional: 1 SD 4 card reader Left side: 1 headphone; 1 headset connector
Camera	2 MP, 1080p, up to 30 fps, FHD pop-up Camera with integrated dual array digital microphone, maximum resolution of 1920 x 1080; 2 MP, 1080p, FHD pop-up Camera with IR sense (front) and 2 MP webcam (rear) with integrated dual array digital microphone, maximum resolution of 1920 x 1080, IR camera for face authentication with Windows Hello
Available Software	Absolute Persistence module; HP Hotkey Support; HP Jumpstart; HP Noise Cancellation Software; HP PhoneWise; HP Recovery Manager; HP Secure Erase; HP Support Assistant; HP Sure Click; Native Miracast Support; HP Wireless Wakeup; Buy Office (sold separately); HP LAN-Wireless Protection; Windows Defender
Security management	Administrator password (via BIOS); DriveLock; Hood sensor; HP BIOSphere with Sure Start; HP Power On Authentication; Power-on password (via BIOS); RAID configurations; SATA port disablement (via BIOS); Serial enable/disable (viaBIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 - Common Criteria EAL4+ Certified); USB enable/disable (via BIOS); Master Boot Record Security; HP Client Security Suite Gen 4; HP Sure Start Gen 4
Management features	HP Driver Packs (download); Update BIOS via Cloud or Network (BIOS feature); Ivanti Management Suite
Power	180 W internal power supply, up to 87% efficiency, active PFC
Dimensions (W X D X H)	21.24 x 2.1 x 13.5 in 54.04 x 5.4 x 34.19 cm (Without stand.)
Weight	14.1 lb 6.4 kg (Starting weight without stand. Exact weight depends on configuration.)
Energy efficiency compliance	ENERGY STAR certified and EPEAT Gold registered configurations available; CECP
Environmental specifications	Low halogen
Warranty	3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

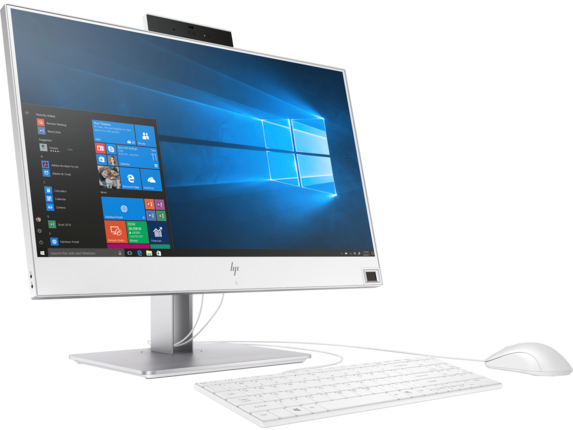

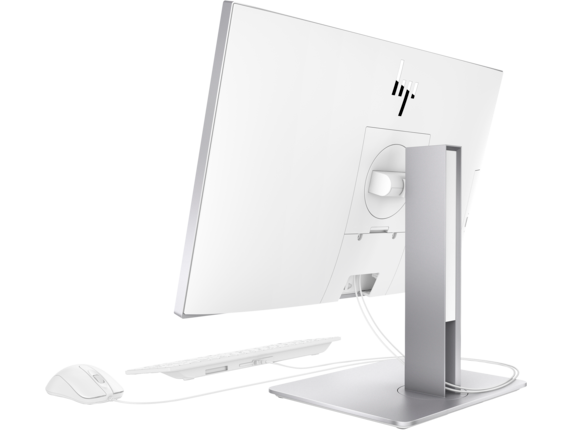

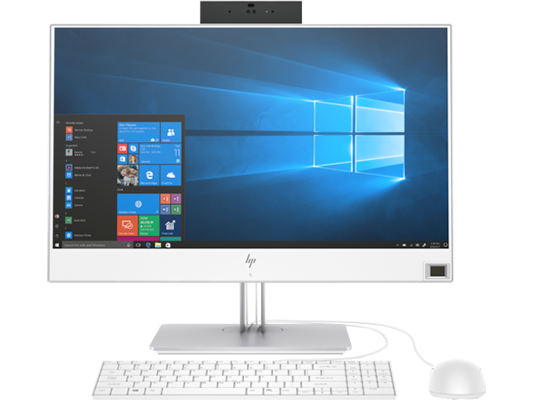

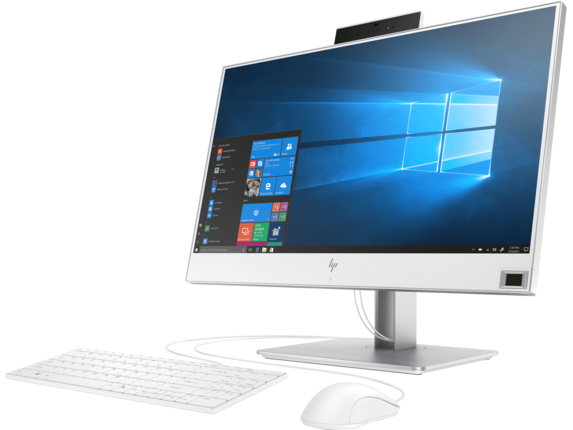

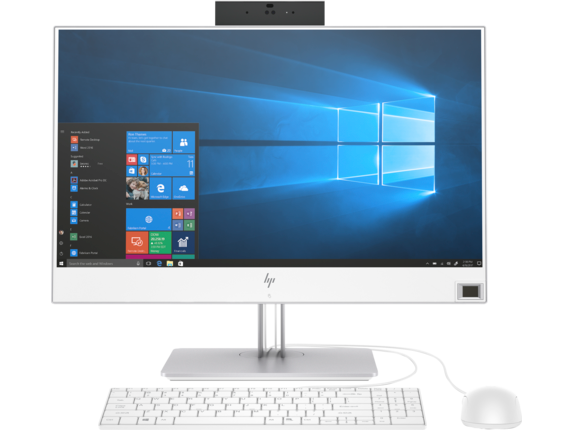

Image Gallery:

Documentation:

Download the HP EliteDesk 800 G4 23.8-inch Healthcare Edition All-in-One PC Datasheet (.PDF)
