HP Z2 Mini Workstation
Transform your workspace with our most powerful mini desktop

Overview:

Get high-end performance packed into an insanely small and versatile device. Take on 3D design projects and work in multiple pro apps with ease. And with the flexibility to be placed almost anywhere, it's the obvious choice for the modern workplace.

• Windows 10 Pro 64
• 8th Generation Intel Core™ i7 processor
• 8 GB memory; 256 GB SSD storage
• Integrated Intel UHD Graphics 630
• 1 M.2 PCIe 3 x1

Features:

Ramp up your performance

Speed up 3D responsiveness and cut render times with high-performance Intel processors and graphics. Don't worry about overheating this tiny machine—our industry-leading thermal design keeps everything running cool, quiet and efficient.

The perfect fit, anywhere.

Create the ideal setup with this flexible device—from the office to the shop floor to the data center. Mount under a desk, behind a display or in a rack. Then connect to multiple displays and other external hardware with plenty of I/O ports.

Safe guard your data. Protect your privacy

Advanced security features come standard on every Z2 Tower. System safeguards like HP Client Security Suite Gen3 and HP Sure Start Gen4 - the industry’s first self-healing BIOS - mean your device is locked down tight, so your data and identity are too.

Featuring

• Support your unique user needs with a choice of Windows 10 Pro 64 or Linux operating systems.
• Get great 3D performance with support for NVIDIA and AMD professional graphics.
• Get powerful performance on single and multi-threaded applications with the latest generation Intel Xeon and Intel Core™ processors.
• Drive up to six displays - four native and two additional with daisy chaining.
• Get workstation-class performance in 2.7 liters.
• Secure your hardware with a built-in Kensington lock and a VESA sleeve that has port blocks.
• Protect the firmware that antivirus can’t reach! The hardware-enforced self-healing protection offered by HP Sure Start Gen4 automatically recovers the BIOS from malware, rootkits, or corruption.
• Get multiple high-speed network connections including a second LAN option without needing to purchase and install an additional network interface card (NIC).
• Configure an optional 135W power supply for cost savings or optimize your configuration with an optional 230W power supply.
• With optional self-encryption drives, you have confidence knowing that if your storage device falls into the wrong hands, your valuable IP has enhanced protection.

Specifications:

HP Z2 Mini G4 Workstation Specifications
Operating system	Windows 10 Pro for Workstations 64 - HP recommends Windows 10 Pro Windows 10 Home 64 Windows 10 Pro (National Academic only) Linux Ready
Processor Family	Intel Pentium Gold processor; Intel Xeon processor (E-2176G, E-2174G, E-2146G, E-2144G, E-2136, E-2126G, E-2124G, E-2104G); 8th Generation Intel Core™ i3 processor; 8th Generation Intel Core™ i5 processor; 8th Generation Intel Core™ i7 processor; 9th Generation Intel Core™ i9 processor; 9th Generation Intel Core™ i7 processor; 9th Generation Intel Core™ i5 processor; 9th Generation Intel Core™ i3 processor
Processors	Intel Xeon E-2176G vPro™ (3.7 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Xeon E-2104G vPro™ with Intel HD Graphics P630 (3.2 GHz, 8 MB cache, 4 cores) Intel Pentium Gold G5400 with Intel HD Graphics 610 (3.7 GHz base frequency, 4 MB cache, 2 cores) Intel Core™ i7 8700 vPro™ with Intel HD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i5 8600 vPro™ with Intel HD Graphics 630 (3.1 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5 8500 vPro™ with Intel HD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i3-8100 with Intel HD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores) Intel Xeon E-2174G vPro™ (3.8 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) Intel Xeon E-2144G vPro™ (3.6 GHz base frequency, up to 4.5 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) Intel Xeon E-2136 vPro™ (3.3 GHz base frequency, up to 4.5 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Xeon E-2126G vPro™ (3.3 GHz base frequency, up to 4.5 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i3-9100 with Intel UHD Graphics 630 (3.6 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) Intel Core™ i5-9500 with Intel UHD Graphics 630 (3.0 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5-9600 with Intel UHD Graphics 630 (3.1 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i7-9700 with Intel UHD Graphics 630 (3.0 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, 8 cores) Intel Core™ i7-9700K with Intel UHD Graphics 630 (3.6 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 12 MB cache, 8 cores) Intel Core™ i9-9900 with Intel UHD Graphics 630 (3.1 GHz base frequency, up to 5.0 GHz with Intel Turbo Boost Technology, 16 MB cache, 8 cores) Intel Core™ i9-9900K with Intel UHD Graphics 630 (3.6 GHz base frequency, up to 5.0 GHz with Intel Turbo Boost Technology, 16 MB cache, 8 cores) Intel Xeon E-2224G (3.4 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores), vPro™ Intel Xeon E-2226G (3.4 GHz base frequency, up to 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores), vPro™ Intel Xeon E-2236 (3.4 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores), vPro™ Intel Xeon E-2244G (3.8 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores), vPro™ Intel Xeon E-2274G (4.0 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores), vPro™ Intel Xeon E-2276G (3.8 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores), vPro™ Intel Xeon E-2278G (3.4 GHz base frequency, up to 5.0 GHz with Intel Turbo Boost Technology, 16 MB cache, 8 cores), vPro™ Intel Xeon E-2286G (4.0 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores), vPro™
Chipset	Intel C246
Maximum Memory	64 GB DDR4-2666 ECC SDRAM; 64 GB DDR4-2666 non-ECC SDRAM (Transfer rates up to 2666 MT/s.)
Memory slots	2 SODIMM
Internal Storage	500 GB up to 1 TB 7200 rpm SATA 2 TB 5400 rpm SATA 256 GB up to 1 TB HP Z Turbo Drive G2 PCIe NVMe™ SSD 256 GB SATA SSD
Optical Storage	Ultra-slim external DVD-Writer
Available Graphics	Integrated: Intel UHD Graphics 630; Intel UHD Graphics P630 Discrete: NVIDIA Quadro P1000 (4 GB GDDR5 dedicated); AMD Radeon™ Pro WX 4150 (4 GB GDDR5 dedicated); NVIDIA Quadro P600 (4 GB GDDR5 dedicated) (Configurations with NVIDIA or AMD graphics are configured on the Mini Performance model only.)
Audio	Conexant CX20632-31Z, 1.5W internal mono speaker
Expansion Slots	1 M.2 PCIe 3 x1

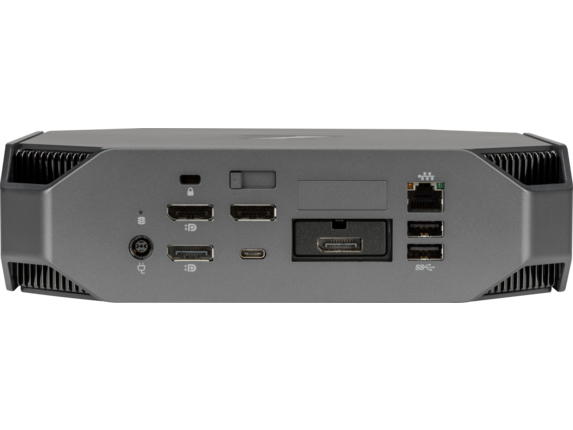

Ports and Connectors	Side: 1 headphone/microphone combo; 2 USB 3.0 (1 charging); 1 USB 3.1 Gen 2 Type-C™ (charging) Back: 1 RJ-45; 2 DisplayPort™ 1.2; 2 USB 3.0 Optional: Flex I/O
Drive Bays	One 2.5"; M.2 NVME 2280 SSD
Input Devices	HP USB Business Slim Keyboard; HP Wireless Business Slim Keyboard; USB Smart Card (CCID) keyboard; HP USB 1000 dpi Laser Mouse; HP USB Optical Mouse;
Networking	LAN: Integrated Intel I219-LM PCIe GbE WLAN: Intel Dual Band Wireless-AC 9560 802.11a/b/g/n/ (2x2) Wi-Fi and Bluetooth 5 Combo
Security	HP Keyed Cable Lock Kit; HP Client Security Suite Gen 4; HP Sure Start Gen 4; HP Sure Run; HP Sure Click; HP BIOSphere Gen4 9
Software	HP Client Security Software; HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Remote Graphics Software (RGS) 7.1; HP Sure Recover; HP Manageability Integration Kit Gen2
Power	135 W external power adapter, up to 89% efficiency, active PFC; 200 W external power adapter, up to 89% efficiency, active PFC; 230 W external power adapter, up to 88% efficiency, active PFC
Dimensions (W X D X H)	8.5 x 8.5 x 2.28 in 21.6 x 21.6 x 5.8 cm (Standard desktop orientation.)
Weight	Starting at 4.5 lb Starting at 2.04 kg (Exact weight depends on configuration.)
Energy Efficiency Compliance	ENERGY STAR certified and EPEAT 2019 registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.
Environmental	Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH
Environmental specifications	Low halogen
Compatible Displays	All HP Z Displays and HP DreamColor Displays are supported.

Image Gallery:

Documentation:

Download the HP Z2 Mini Workstation Datasheet (.PDF)
