HP Engage Flex Pro-C Retail System
Your retail workhorse, now available in a handy miniature size

Overview

Efficiently manage your retail business from the store floor to the back office with the petite but powerful HP Engage Flex Pro-C. Our stable, secure, and highest-performing compact retail platform is 30% smaller than its predecessor and still delivers maximum flexibility for a range of deployments.

• HP recommends Windows 10 Pro.

Features

Build your best solution for even the smallest spaces

Configure the perfect fit for your space, users, and environment—point of sale, video surveillance, processing/controlling, digital signage or OEM needs—with flexible connectivity, graphics, and networking options and a suite of retail peripherals.

Poised to perform and expand with your business

Tackle every retail challenge with a powerful 8th Gen Intel processor and Intel Optane memory. Adjust capacity as your needs change with endless storage options like an Intel Optane SSD, SATA or M.2—up to four total drives per system.

Secure, manageable, and reliable out of the box

Reduce the cost and complexity of managing your platforms and secure your critical assets with innovative, integrated, and proactive security and manageability features for your system and its data.

Featuring

• Stick with an OS you know with your choice of Windows 10 Pro, Windows IoT or FreeDOS.
• Get hardware-enforced self-healing protection from HP Sure Start Gen4, manage your system across the OS with HP Manageability Integration Kit, maintain critical OS processes with HP Sure Run, and restore your image over a network with HP Sure Recover.
• Minimize downtime with a design that goes the distance. It passes HP's Total Test Process and has a steel chassis and gold-plated connectors that are tested to withstand temperatures up to 40° C. Extend lifespan with an optional dust filter.
• Deploy quickly with HP Configuration Services. Plan ahead with a five-year lifecycle that lets you roll out on your schedule. Get the reassurance of a three-year worldwide limited warranty, and extend protection with optional HP Care services.

Specifications

HP Engage Flex Pro-C Retail System Technical Specifications

HP Engage Flex Pro-C Retail System Specifications
Operating system	Windows 10 Pro 64 Windows 10 IoT Enterprise 2016 LTSC 64 FreeDOS 2.0
Processor family	8th Generation Intel Core i3 + processor (Core i3 and Intel Optane memory); 8th Generation Intel Core i5 + processor (Core i5 and Intel Optane memory); 8th Generation Intel Core i5 processor (i5 8500, i5 8500T); 8th Generation Intel Core i7 + processor (Core i7 and Intel Optane memory); 8th Generation Intel Core i7 processor (i7 8700); Intel Celeron processor; Intel Pentium processor
Available Processors	Intel Core i3 8100 (Core i3 and 16 GB Intel Optane memory) with Intel UHD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores); Intel Core i7+ 8700 vPro (Core i7 and 16 GB Intel Optane memory) with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores); Intel Celeron G4900 with Intel UHD Graphics 610 (3.1 GHz, 2 MB cache, 2 cores); Intel Core i3 8100T (Core i3 and 16 GB Intel Optane memory) with Intel UHD Graphics 630 (3.1 GHz, 6 MB cache, 4 cores); Intel Pentium Gold G5400 with Intel UHD Graphics 610 (3.7 GHz, 4 MB cache, 2 cores); Intel Core i5 8500 vPro with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores); Intel Core i7 8700 vPro with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores); Intel Core i5 8500T vPro with Intel UHD Graphics 630 (2.1 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores); Intel Core i5+ 8500 vPro (Core i5 and 16 GB Intel Optane memory) with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores); Intel Core i5+ 8500T vPro (Core i5 and 16 GB Intel Optane memory) with Intel UHD Graphics 630 (2.1 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Chipset	Intel Q370
Form factor	Ultra Small Form Factor
Maximum memory	64 GB DDR4-2666 SDRAM Transfer rates up to 2666 MT/s.
Memory slots	4 DIMM
Internal storage	500 GB up to 2 TB 7200 rpm SATA 128 GB up to 512 GB 5400 rpm SATA SSHD up to 256 GB SATA SSD SED Opal 2 128 GB up to 1 TB M.2 SATA SSD
Available Graphics	Integrated: Intel UHD Graphics 630; Intel UHD Graphics 610 Discrete: NVIDIA Quadro P400 (4 GB GDDR5 dedicated); AMD Radeon R7 430 Graphics (2 GB GDDR5 dedicated)
Audio	Conexant CX20632 codec, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable
Expansion slots	1 half-height PCIe x16 (x4); 2 full-height PCIe (x1); 2 half-height PCIe x4

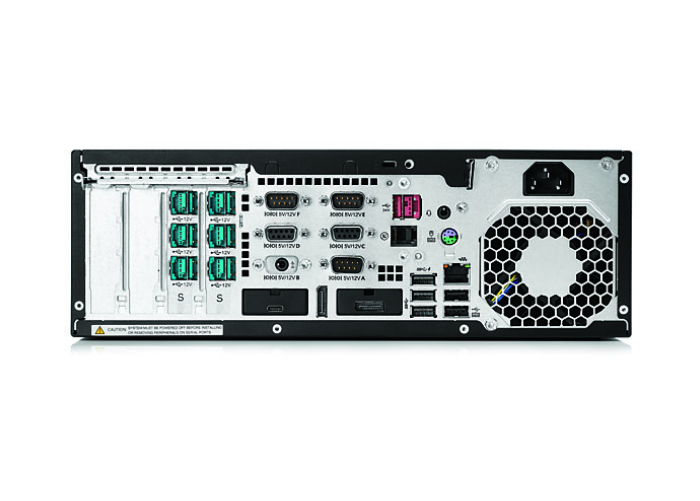

Ports and Connectors	Rear: 1 headset connector; 1 RJ-45; 1 configurable video port; 1 USB 3.1 Gen 1 (charging); 2 configurable video ports; 1 DisplayPort 2.0 Front: 2 USB 3.1 Gen 1 (Additional optional ports include up to 6 RS-232 (5/12V), up to 6 12V USB, 1 24V USB, 1 RJ-12 cash drawer.)
Communications	LAN: Intel I210-T1 PCIe GbE; Intel I219-LM GbE WLAN: Intel Dual Band Wireless-AC 9260 802.11ac (2x2) and Bluetooth 5 M.2, vPro
Drive Bays	Two 2.5"; Two M.2
Environmental	Operating temperature: 10 to 40°C Operating humidity: 20 to 85% RH
Available Software	Buy Office; HP ePrint Driver; HP Recovery Manager; HP Support Assistant; Absolute Persistence module; HP Hotkey Support; HP PhoneWise; HP Velocity; HP Wireless Wakeup; HP ePrint Driver + JetAdvantage
Security Management	Power-on password (via BIOS); Setup password (via BIOS); Trusted Platform Module TPM 2.0 Embedded Security Chip; USB enable/disable (via BIOS); Serial enable/disable (via BIOS); DriveLock; HP BIOSphere; HP Password Manager; HP Power On Authentication; Intel Identity Protection Technology (Intel IPT); RAID configurations; Removable media write/boot control; SATA port disablement (via BIOS); Support for chassis padlocks and cable lock devices; HP Client Security Suite Gen 4; HP Sure Start Gen 4; Solenoid lock and hood sensor; HP Sure Run; Parallel enable/disable (via BIOS); Front USB enable/disable (via BIOS); HP BIOSphere Gen4
Management features	HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); Update BIOS via Cloud or Network (BIOS feature); HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2
Power	250 W internal power adapter, up to 90% efficiency, active PFC
Dimensions (W x D x H)	11.81 x 11.89 x 3.94 in 30 x 30.2 x 10 cm
Weight	8.8 lb 3.99 kg (Exact weight depends on configuration.)
Energy efficiency compliance	ENERGY STAR certified and EPEAT registered configurations available
Environmental specifications	Low halogen
Warranty	3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Image Gallery

Documentation

Download the HP Engage Flex Pro-C Retail System Datasheet (PDF)
