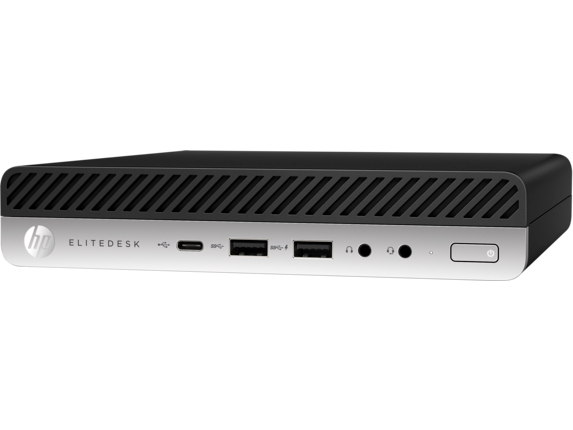

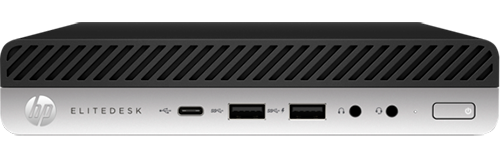

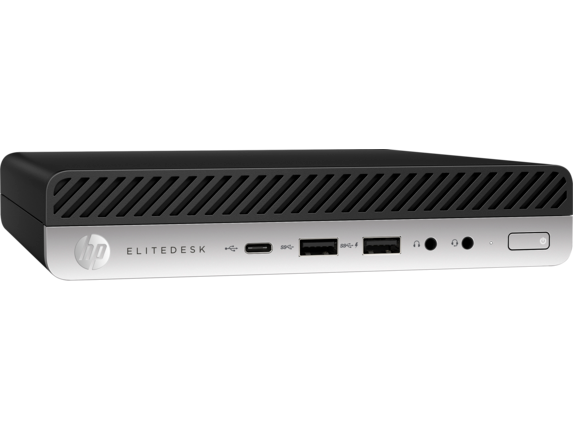

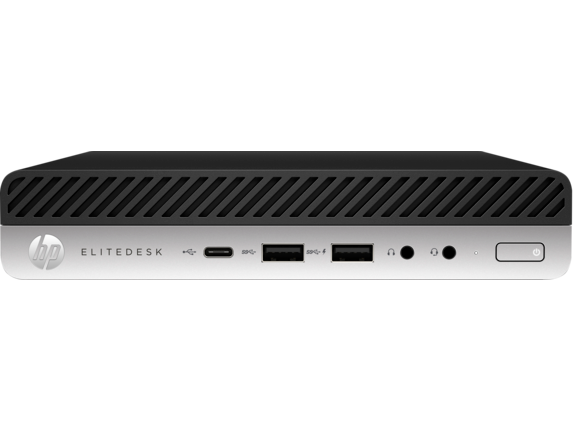

HP EliteDesk 800 G4 Desktop Mini PC
Ultra-small, enterprise ready

Overview:

Deploy a PC built for the enterprise with 8th Gen Intel Core™ processors. The HP EliteDesk 800 Desktop Mini has performance, reliability, and expandability for today’s workforce in a stylish and versatile design.

• Windows 10 Pro
• 8th Generation Intel Core™ i3/i5/i5+/i7/i7+ processor
• HP Sure Start Gen4
• Up to 32 GB memory; Up to 256 SSD Storage; Up to 2 TB HDD storage
• Intel UHD Graphics 610; Intel UHD Graphics 630

Features:

Streamlined for a clean workspace

Take your footprint down to near zero with a PC that mounts behind and is powered by an HP EliteDisplay. Place it almost anywhere with HP Desktop Mini accessories. Reduce connection clutter with a single short USB-C™ cable6 and rear I/O ports.

Meetthe mighty Mini

Create panoramic views of static and dynamic imagery on up to 7 daisy-chained displays from one PC. Transfer data fast with an optional Thunderbolt™ card. Expand even more with options like Intel Optane™ memory or an M.2 SSD PCIe Drive.

Enhanced data and device security

Get a highly secure PC with the self-healing protection of HP Sure Start Gen4. Integrate into the most secure network infrastructures with an optional fiber network adapter. Store and lock your Mini and power cord in the optional HP Lock Box.

Expansion that extends yourinvestment

Maximize PC life as your business needs change with an optional serial port for legacy devices; VGA, HDMI, Display Port™ or USB-C™ DisplayPort™ Alt-Mode for displays; USB-C™ Power11 to draw power or Thunderbolt™ for fast connections.

Featuring

• Be productive in any situation with Windows 10 Pro and powerful security, collaboration, and connectivity features from HP.
• Customize your HP Elite Desktop Mini solution with a range of exclusive accessories designed to simplify display, wall, and rack mounting.
• Enhance collaboration with the optional HP UC Speaker Phone, Intel Unite™ or the HP Conferencing Keyboard and HP UC Wireless Duo Headset that work with Skype for Business.
• Protect your PC with the hardware-enforced self-healing protection of HP Sure Start Gen4 that automatically recovers the BIOS.
• Quickly and securely restore PCs to the latest image using a network connection with HP Sure Recover.
• Keep your critical applications and processes running even if malware tries to shut them down with the self-healing protection of HP Sure Run.
• Help protect your PC from websites, attachments, malware, ransomware, and viruses with hardware-enforced security from HP Sure Click.
• The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager
• Keep data out of reach and defend against theft, attacks, and unauthorized users with HP Client Security Manager Gen4.
• ITDMs can quickly help create, improve, and secure custom Windows images with HP Image Assistant Gen3.
• Rest easy with a PC that goes the distance and is designed to pass HP Total Test Process and MIL-STD 810G testing.

Specifications:

HP EliteDesk 800 G4 Desktop Mini PC Specifications
Operating system	Windows 10 Pro 64 – HP recommends Windows 10 Pro Windows 10 Pro 64 (National Academic only) FreeDOS 2.0
Processor Family	8th Generation Intel Core™ i7 processor (i7-8700T) 8th Generation Intel Core™ i5 processor (i5-8500T, i5-8600T) 8th Generation Intel Core™ i3 processor (i3-8100T, i3-8300T) Intel Pentium processor (G5400T, G5500T are Windows 10 only) 8th Generation Intel Core™ i7+ processor (i7-8700T) 8th Generation Intel Core™ i5+ processor (i5-8500T, i5-8600T)
Processors	Intel Core™ i3-8300T with Intel UHD Graphics 630 (3.2 GHz, 8 MB cache, 4 cores) Intel Core™ i3-8100T with Intel UHD Graphics 630 (3.1 GHz, 6 MB cache, 4 cores) Intel Pentium Gold G5500T with Intel UHD Graphics 630 (3.2 GHz, 4 MB cache, 2 cores) Intel Pentium Gold G5400T with Intel UHD Graphics 610 (3.1 GHz, 4 MB cache, 2 cores) Intel Core™ i7-8700T vPro™ processor with Intel UHD Graphics 630 (2.4 GHz base frequency, up to 4 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i7+ 8700T vPro™ processor (Core™ i7 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (2.4 GHz base frequency, up to 4 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i5-8600T vPro™ processor with Intel UHD Graphics 630 (2.3 GHz base frequency, up to 3.7 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5+ 8600T vPro™ processor (Core™ i5 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (2.3 GHz base frequency, up to 3.7 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5-8500T vPro™ processor with Intel UHD Graphics 630 (2.1 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5+ 8500T vPro™ processor (Core™ i5 and 16 GB Intel Optane™ memory) with Intel UHD Graphics 630 (2.1 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores)
Chipset	Intel Q370
Form factor	Mini
Maximum Memory	32 GB DDR4-2666 SDRAM Transfer rates up to 2666 MT/s
Memory slots	2 SODIMM
Internal Storage	500 GB up to 1 TB 7200 rpm SATA 2 TB 5400 rpm SATA 500 GB SATA SED Opal 2 HDD 500 GB 7200 rpm SATA FIPS SED 256 GB up to 512 GB SATA SED Opal 2 TLC SSD 256 GB up to 512 GB SATA FIPS SSD 128 GB up to 512 GB PCIe NVMe™ M.2 SSD 128 GB up to 1 TB PCIe NVMe™ TLC M.2 SSD 256 GB up to 512 GB PCIe NVMe™ SED Opal 2 TLC M.2 SSD
Available Graphics	Integrated: Intel UHD Graphics 630; Intel UHD Graphics 610 Discrete: AMD Radeon™ RX 560 Graphics (4 GB GDDR5 dedicated)
Audio	Conexant CX20632 codec, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable
Expansion Slots	1 M.2 2230; 2 M.2 2230/2280 (1 M.2 slot for WLAN and 2 M.2 2230/2280 slot for storage.)

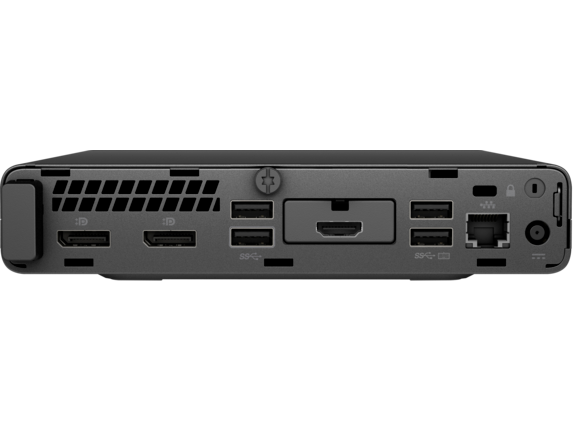

Ports and Connectors	Rear: 1 external antenna connector; 1 power connector; 1 RJ-45; 2 DisplayPort™ 1.2; 2 USB 3.1 Gen 1; 2 USB 3.1 Gen 2 Front: 1 headphone; 1 headset connector; 1 USB 3.1 Gen 1 (charging); 1 USB 3.1 Gen 2; 1 USB 3.1 Type-C™ Gen 2 Optional: 1 DisplayPort™ 1.2; 1 HDMI 2.0; 1 serial; 1 USB 3.1 Type-C™ Gen 1 (DisplayPort™); 1 USB 3.1 Type-C™ Gen 1 (Power Delivery, DisplayPort™); 1 USB 3.1 Type-C™ Gen 2 (with Thunderbolt™); 1 VGA
Drive Bays	One 2.5" HDD
Input Devices	HP Conferencing Keyboard; HP USB and PS/2 Washable Keyboard; HP USB Business Slim Keyboard; HP USB Keyboard; HP USB Smart Card (CCID) Keyboard; HP Wireless Business Slim Keyboard and Mouse Combo; HP Wireless Collaboration Keyboard; HP USB 1000 dpi Laser Mouse; HP USB Antimicrobial Mouse; HP USB Hardened Mouse; HP USB Optical Mouse; HP USB Premium Mouse
Communications	LAN: Integrated Intel I219LM GbE LOM WLAN: Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2, non-vPro™; Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2, vPro™
Available Software	Absolute Persistence module; HP Hotkey Support; HP Noise Cancellation Software; HP Support Assistant; Native Miracast Support; HP Wireless Wakeup; Buy Office (sold separately); HP Sure Recover; HP JumpStarts
Security management	DriveLock; Hood sensor; HP BIOSphere; HP Client Security Suite Gen 4; HP Password Manager; HP Power On Authentication; HP Sure Run; HP Sure Start Gen 4; Intel® Identity Protection Technology (Intel IPT); Parallel enable/disable (via BIOS); Power-on password (via BIOS); RAID configurations; Removable media write/boot control; SATA port disablement (via BIOS); Serial enable/disable (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); USB enable/disable (via BIOS)
Management features	HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); Intel® vPro™ Technology; Ivanti Management Suite; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2
Power	150 W external power adapter, up to 89% efficiency, active PFC; 65 W external power adapter, up to 89% efficiency
Dimensions (W X D X H)	6.96 x 6.88 x 1.33 in 17.7 x 17.5 x 3.4 cm
Weight	2.13 lb 0.96 kg (Exact weight depends on configuration.)
Energy Efficiency Compliance	ENERGY STAR certified; EPEAT Gold
Environmental	Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH
Environmental specifications	Low halogen
Warranty	1 year (1-1-1) limited warranty or 3 years (3-3-3) limited warranty delivers one year or three years of on-site, next business day service for parts and labor and includes free telephone support 24/7. One-year and three-year onsite and labor are not available in all countries. Service offers terms up to 5 years by choosing a Care Pack.

Image Gallery:

Documentation:

Download the HP EliteDesk 800 G4 Desktop Mini PC Datasheet (.PDF)
