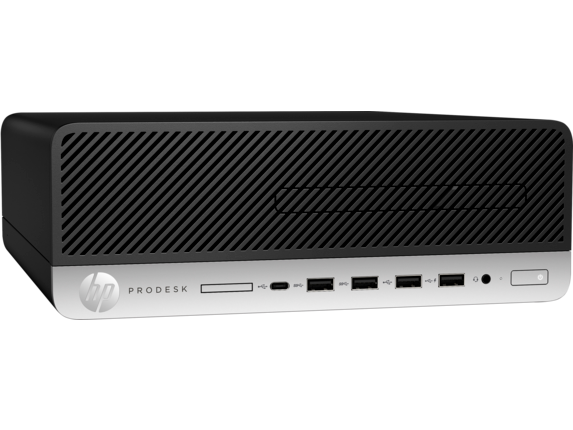

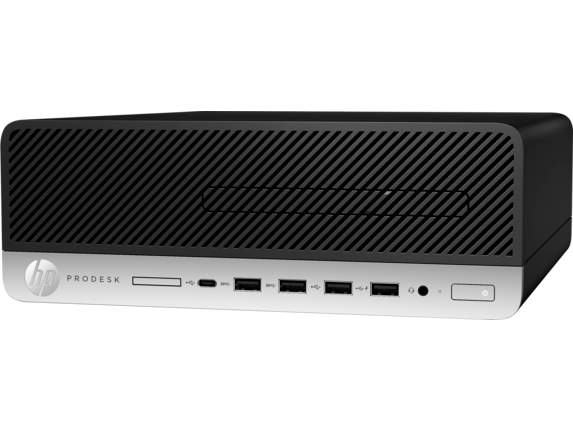

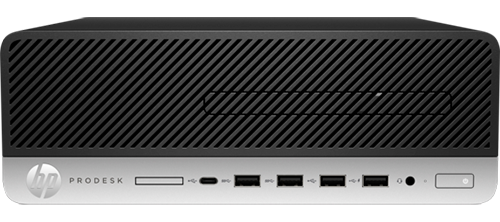

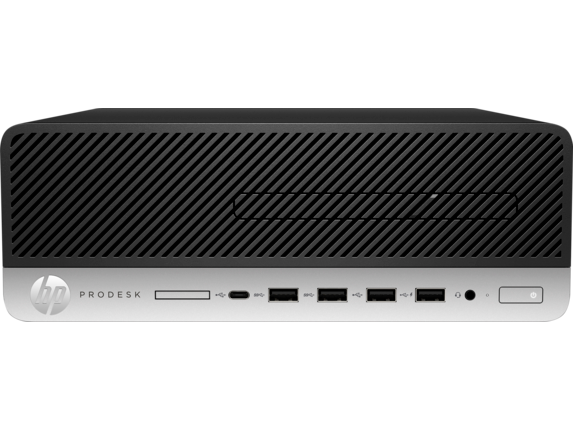

HP ProDesk 600 G4 Small Form Factor PC
Ready for expansion

Overview
Powered for business, the HP ProDesk 600 SFF is a highly expandable PC featuring flexible connectivity options, strong security, and comprehensive manageability features in a stylishly designed chassis for the modern workplace.
Ready for expansion
- Windows 10 Pro 64
- 8th Generation Intel Core i5 processor
- 4 GB memory; 500 GB HDD storage
- Integrated Intel UHD Graphics 630
Features
Expansion that extends your investment
The full value of your investment comes with expansion that extends the life of your PC. The HP ProDesk 600 SFF has two bays, two slots, two M.2 connectors, and optional dual SSDs with RAID support.
Built on a secure foundation
Protect your PC against the evolving malware threats of the future, with our self-healing, hardware-enforced, and manageable security solutions. From the BIOS to the browser HP Sure Start Gen4 and HP Sure Click help secure your PC.
Powerful options
Power through your day with high-performance 8th Gen Intel Core processors, optional Intel Optane memory, and graphics cards.
Connection hub
With 11 total USB ports including one USB Type-C, up to three video outputs, and optional Bluetooth connectivity, the HP ProDesk 600 SFF becomes a hub for all your devices in the office.
Key Capabilities
- Power through your day with Windows 10 Pro with built-in security, collaboration, and connectivity.
- Protect the firmware that antivirus can't reach! The hardware-enforced self-healing protection offered by HP Sure Start Gen4 automatically recovers the BIOS from malware, rootkits, or corruption.
- Help protect your PC from websites, attachments, malware, ransomware, and viruses with hardware-enforced security from HP Sure Click.
- Keep productivity high and downtime low with HP BIOSphere Gen4 firmware-level automation. Your PCs have extra protection thanks to automatic updates and security checks.
- The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.
- HP Client Security Manager Gen4 features HP Multi-Factor Authenticate, HP Device Access Manager, HP SpareKey, and HP Password Manager. These tools work to keep data out of reach and defend against theft, attacks, and unauthorized users.
- Improve the quality and security of custom Windows images with HP Image Assistant Gen3 which assists ITDMs with image creation, identifies problems, and provides recommendations and remediation.
Specifications
| HP ProDesk 600 G4 Small Form Factor PC Specifications | |
|---|---|
| Operating system | Windows 10 Pro 64 – HP recommends Windows 10 Pro Windows 10 Pro 64 (National Academic only) FreeDOS 2.0 |
| Processor Family | Intel Celeron processor (G4900 is Windows 10 only); 8th Generation Intel Core i7 processor (i7-8700); 8th Generation Intel Core i5 processor (i5-8500, i5-8600); 8th Generation Intel Core i3 processor (i3-8100, i3-8300); Intel Pentium processor (G5400, G5500, G5600 are Windows 10 only); 8th Generation Intel Core i7+ processor (i7-8700); 8th Generation Intel Core i5+ processor (i5-8500, i5-8600) |
| Processors | Intel Core i7-8700 with Intel UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores); Intel Core i3-8100 with Intel UHD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores); Intel Celeron G4900 with Intel UHD Graphics 610 (3.1 GHz, 2 MB cache, 2 cores); Intel Core i5-8500 with Intel UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores); Intel Pentium Gold G5400 with Intel UHD Graphics 610 (3.7 GHz, 4 MB cache, 2 cores); Intel Core i5-8600 with Intel UHD Graphics 630 (3.1 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores); Intel Core i3-8300 with Intel UHD Graphics 630 (3.7 GHz, 8 MB cache, 4 cores); Intel Pentium Gold G5600 with Intel UHD Graphics 630 (3.9 GHz, 4 MB cache, 2 cores); Intel Pentium Gold G5500 with Intel UHD Graphics 630 (3.8 GHz, 4 MB cache, 2 cores); Intel Core i7+ 8700 (Core i7 and 16 GB Intel Optane memory) (3.2 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores); Intel Core i5+ 8600 (Core i5 and 16 GB Intel Optane memory) (3.1 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores); Intel Core i5+ 8500 (Core i5 and 16 GB Intel Optane memory) (3 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) |
| Chipset | Intel Q370 |
| Form factor | Small form factor |
| Maximum Memory | 64 GB DDR4-2666 SDRAM Transfer rates up to 2666 MT/s |
| Memory slots | 4 DIMM |
| Internal Storage | up to 500 GB SATA SED Opal 2 HDD up to 500 GB SATA FIPS SED HDD 256 GB up to 512 GB SATA SSD 256 GB up to 512 GB SATA SED Opal 2 SSD 256 GB up to 512 GB SATA SED FIPS 140-2 SSD 128 GB up to 512 GB PCIe NVMe M.2 SSD 128 GB up to 1 TB PCIe NVMe TLC M.2 SSD 256 GB up to 512 GB PCIe NVMe SED Opal 2 TLC M.2 SSD 500 GB up to 2 TB SATA HDD |
| Optical Storage | HP 9.5 mm Slim DVD-Writer; HP 9.5 mm Slim DVD-ROM; HP 9.5 mm Slim Blu-ray writer |
| Available Graphics | Integrated: Intel UHD Graphics 630; Intel UHD Graphics 610 Discrete: AMD Radeon R7 430 Graphics (2 GB GDDR5 dedicated) |
| Audio | Conexant CX20632 codec, 2 W internal speaker, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable |
| Expansion Slots | 1 M.2 2230; 1 M.2 2230/2280; 1 PCIe 3 x4; 1 PCIe 3 x16; 1 SD 4.0 media card reader (1 M.2 slot for WLAN and 1 M.2 2230/2280 slot for storage.) |

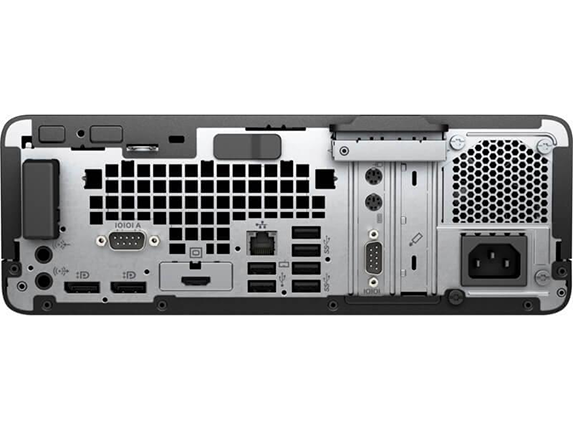

| Ports and Connectors | Front: 1 headset connector; 1 USB 2.0; 1 USB 2.0 (fast charging); 2 USB 3.1 Gen 2; 1 USB 3.1 Type-C Gen 2 Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 2 USB 2.0; 2 DisplayPort 1.2; 2 USB 3.1 Gen 1; 2 USB 3.1 Gen 2 Optional: 1 DisplayPort 1.2; 1 HDMI 2.0; 1 serial and 1 serial and PS/2 ports combination; 1 USB 3.1 Type-C Gen 2 (DisplayPort); 1 VGA |
| Drive Bays | One 3.5" HDD; Two 2.5" HDD |
| Input Devices | HP PS/2 Business Slim Keyboard; HP USB and PS/2 Washable Keyboard; HP USB Conferencing Keyboard; HP USB Premium Keyboard and Mouse Combo; HP USB Wired Keyboard; USB Business Slim Standalone Wired Keyboard; HP USB Collaboration Wired Keyboard; HP Wireless Collaboration Keyboard; HP USB Business Slim Smart Card (CCID) Keyboard; HP Wireless Premium Standalone Keyboard; HP USB 1000 dpi Laser Mouse; HP USB Optical Mouse; HP USB Premium Mouse |
| Communications | LAN: Intel I210-T1 PCIe GbE; Intel I219LM GbE; WLAN: Realtek RTL8822BE-CG 802.11a/b/g/n/ac (2x2) with Bluetooth 4.2 M.2 PCIe; Realtek RTL8821CE-CG 802.11a/b/g/n/ac (1x1) with Bluetooth M.2 PCIe; Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth 5 M.2 PCIe vPro; Intel Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth M.2 PCIe, non-vPro |
| Available Software | Absolute Persistence module; HP Device Access Manager; HP Hotkey Support; HP Noise Cancellation Software; HP Recovery Manager; HP Secure Erase; HP Support Assistant; HP Sure Click; Native Miracast Support; HP Wireless Wakeup; Buy Office (sold separately); Windows Defender; HP JumpStarts |
| Security management | DriveLock; Hood sensor; HP BIOSphere; HP Credential Manager; HP Password Manager; HP Power On Authentication; HP Spare Key; Intel Identity Protection Technology (Intel IPT); Power-on password (via BIOS); RAID configurations; Removable media write/boot control; SATA port disablement (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; USB enable/disable (via BIOS); Master Boot Record Security; HP Client Security Suite Gen 4; HP Sure Start Gen 4; Pre-boot Authentication; Serial enable/disable (via BIOS); Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified) |
| Management features | HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); Update BIOS via Cloud or Network (BIOS feature); Ivanti Management Suite; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2 |
| Power | 1700 W internal power supply, up to 90% efficiency, active PFC; 1450 W internal power supply, up to 90% efficiency, active PFC; 1125 W internal power supply, up to 90% efficiency, active PFC |
| Dimensions (W X D X H) | 3.7 x 10.6 x 11.7 in 9.5 x 27 x 29.6 cm |
| Weight | 9.92 lb 4.5 kg (Exact weight depends on configuration.) |
| Energy Efficiency Compliance | ENERGY STAR certified; EPEAT Gold |
| Environmental | Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH |
| Environmental specifications | Low halogen |
| Warranty | 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Includes free 24/7 telephone support. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
