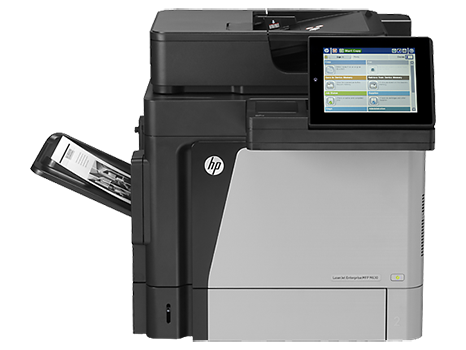

HP LaserJet Enterprise MFP M630h J7X28A#BGJ

Name: HP LaserJet Enterprise MFP M630h
Brand: HP
SKU: J7X28A#BGJ

Enterprise Digital Workflow MFP
Full-featured Flow MFP that streamlines digital workflow and safeguards business information.

Sorry, this product is no longer available, please contact us for a replacement.

Overview

A full-featured HP Enterprise MFP that accelerates productivity and streamlines digital workflow, safeguards business data and documents with a robust suite of top-flight security features, and offers simple, efficient mobile printing.

Powerful performance to enhance workflow

Finish faster—without missing a page—using single-pass, dual-head scanning, and the automatic document feeder.
Manage jobs directly at the MFP, using the 8-inch color touchscreen with image preview.
Easily tackle large jobs with a paper capacity of up to 3,100 sheets, and paper-finishing options.¹
Quickly troubleshoot problems with cloud-based help services that are relevant and up to date.³

Protecting your business—now and in the future

Safeguard and manage your printing with the HP Imaging and Printing Security Center and HP Web Jetadmin.⁴
Confidently safeguard the sensitive data sent to your MFP with the encrypted hard drive.
Store print jobs, then print them via secure authentication at the MFP, using HP JetAdvantage Pull Print.⁵
Safeguard security keys, passwords, and certificates with the HP Trusted Platform Module.⁶

Quick and easy mobile printing⁷

Enable optional touch-to-print and touch-to-authenticate convenience from mobile devices.⁸
Enable secure peer-to-peer direct-access mobile printing without connecting to the corporate network.⁹
Print on the go from your smartphone, tablet, and notebook with HP ePrint¹⁰ and AirPrint™.¹¹

Eco Highlights

Help save energy with HP Auto-On/Auto-Off Technology.^eco01
Print reliably on a wide range of paper types—including office papers as light as 60 GSM.
Save energy with an MFP that's ENERGY STAR® qualified.
^eco01 HP Auto-On/Auto-Off Technology capabilities are subject to printer and settings; may require a firmware upgrade.

¹ Optional high-input paper trays must be purchased separately. ² Paper-handling options vary by model and may require separate purchase. ³ Online help must be enabled on the printer or MFP. Mobile device must have an Internet connection to access online services. ⁴ HP Web Jetadmin is free and available for download at http://www.hp.com/go/webjetadmin. ⁵ Pull-printing is available at no charge and requires the MFP be connected to the Internet. For more information, see http://www.hpjetadvantage.com. ⁶ Use of the optional HP Trusted Platform Module accessory may require a firmware upgrade. ⁷ Local printing requires mobile device and printer to be on the same wireless network or have a direct wireless connection. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. App or software and HP ePrint account registration may also be required. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area. See hp.com/go/mobileprinting for more details. Some features require purchase of optional module. ⁸ HP touch-to-print requires purchase of an optional module. Mobile device must support near field communications-enabled printing. For a list of supported devices, see http://www.hp.com/go/businessmobileprinting. ⁹ Wireless direct printing requires purchase of optional module. Mobile device needs to be connected directly to the WiFi network of a wireless-direct capable MFP or printer prior to printing. Depending on mobile device, an app or driver may also be required. Wireless performance is dependent on physical environment and distance from the access point in the MFP or printer. For details, see http://www.hp.com/go/businessmobileprinting. ¹⁰ Requires an Internet connection to an HP web-enabled printer and HP ePrint account registration. For a list of eligible printers, supported documents and image types, and other HP ePrint details, see http://www.hpconnected.com. Mobile devices require Internet connection and email capability. May require wireless access point. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz routers only. ¹¹ Supports the following devices running iOS 4.2 or later: iPad®, iPad® 2, iPhone® (3GS or later), iPod touch® (3rd generation or later). Works with HP's AirPrint-enabled printers and requires the printer be connected to the same network as your iOS device. Wireless performance is dependent upon physical environment and distance from the access point. AirPrint, the AirPrint logo, iPad, iPhone, and iPod touch are trademarks of Apple® Inc., registered in the U.S. and other countries. ¹² An FCC Class A emissions compliant device meets the less stringent (higher) levels of emissions allowed by the FCC for a product operation in a commercial environment. An FCC class A device cannot be marketed for use in a residential environment and an FCC class A device should not be purchased for use in a residential environment due to the increased risk of interference to radio communications.

Specifications

HP LaserJet Enterprise MFP M630h Specifications
HP LaserJet Enterprise MFP M630h Specifications
Functions
All-in-one functions	Print, copy, scan, digital send, print from Easy Access USB, scan to Easy Access USB
Multitasking supported	Yes
Printing specifications
Mobile Printing Capability	HP ePrint, Apple AirPrint™, Mobile Apps, optional Touch to Print, optional Wireless Direct printing, optional Touch to Authenticate
Print speed black (normal, letter)	Up to 60 ppm
Print resolution, black	Up to 1200 x 1200 dpi
First page out (black)	As fast as 8.5 sec
Monthly duty cycle	Up to 250,000 pages
Recommended monthly print volume	5,000 to 28,000
Print technology	Laser
Paper Handling
Paper handling standard, input	100-sheet multipurpose tray, 500-sheet input tray, 100-sheet automatic document feeder
Paper handling optional, input	Optional 1 x 500-sheet paper feeder, 1 x 500-sheet feeder with cabinet, 2500-sheet feeder high capacity input, envelope feeder
Paper handling standard, output	500-sheet output bin
Paper handling optional, output	Optional 900-sheet, 3-bin stapling mailbox
Envelope capacity	Up to 75 envelopes
Envelope feeder	Optional with the purchase of a 75-sheet envelope feeder
Document finishing	Sheetfed
Duplex printing	Automatic (standard)
Media sizes, standard	Letter; Legal; Executive; Oficio (8.5 x 13 in)
Output capacity	Up to 75 envelopes
Media sizes, custom	Tray 1: 3 x 5 to 8.5 x 14 in; Trays 2: 5.83 x 8.27 to 8.5 x 14 in
Media weight	Tray 1: 16 to 53 lb bond (plain), 16 to 24 lb (envelopes); Tray 2: 16 to 32 lb bond (plain)
Media types	Paper (plain, light, bond, recycled, heavy, extra heavy, cardstock, pre-printed, pre-punched, colored, rough, heavy rough), mono transparency, labels, letterhead, envelope, heavy envelope
Weight	113.7 lb (51.6 kg)
Additional Specifications
Processor speed	800 Mhz
Memory, standard	1.5 GB (System Memory)
Memory, maximum	2.0 GB (System Memory)
Print languages, standard	HP PCL 6, HP PCL 5 (HP PCL 5 driver available from the Web only), HP postscript level 3 emulation, native PDF printing (v 1.7), Apple AirPrint™
Scanner specifications
Scanner type	Flatbed, ADF
Scan resolution, optical	Up to 600 dpi
Bit depth	24-bit
Scan size, maximum (flatbed)	8.5 x 14 in
Scan size, maximum (ADF)	8.5 x 14 in
Print colors	No
Scanner duplex feeder	Yes, single pass duplexing ADF
Sure Supply Support	Yes
Automatic paper sensor	Yes
Digital sending specifications
Digital sending features	Scan to e-mail; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL; Scan to HP Flow CM
Supported file formats	Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht)
Copier specifications
Maximum number of copies	Up to 9999 copies
Copy reduce/enlarge settings	25 to 400%
Copy resolution, black	Up to 600 x 600 dpi (Flatbed), 300 x 600 dpi (ADF)
Fax specifications
Faxing	No
Connectivity
HP ePrint capability	Yes
Connectivity, optional	HP Jetdirect 2700w USB Wireless Print Server J8026A; HP Jetdirect 2800w NFC/Wireless Direct Accessory J8029A; HP Jetdirect ew2500 802.11b/g Wireless Print Server J8021A
Connectivity, standard	Hi-Speed USB 2.0 port; built-in Gigabit Ethernet 10/100/1000Base-TX network port
Mobile printing capability	HP ePrint, Apple AirPrint™, Mobile Apps, optional Touch to Print, optional Wireless Direct printing, optional Touch to Authenticate
Minimum system requirements	PC: Windows full software installs supported on: Windows 8 & 8.1 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP 32-bit (SP2 or higher); Mac full software installs: OS X 10.7 Lion, OS X 10.8 Mountain Lion, OS X 10.9 Mavericks; Mobile OS native print support: iOS, Android, Windows 8 RT; Other OSs driver support: Debian, Fedora, HPUX 11 and Solaris 8/9, Linux, Red Hat Enterprise Linux 5.0, SUSE Linux, Ubuntu; CD-ROM or DVD drive, or Internet connection; Dedicated USB or network connection or Wireless connection; 200 MB available hard disk space Macintosh: OS X 10.7 Lion, OS X 10.8 Mountain Lion, OS X 10.9 Mavericks; Internet; USB; 1 GB HD
Compatible operating systems	Windows XP (SP3) (32-bit), Windows XP (SP3) (64-bit), Windows 7 (Including Starter Edition 32-bit), Windows 7 (Including Starter Edition 64-bit), Windows Vista (Including Starter Edition 32-bit), Windows Vista (64-bit), Windows 8 Basic (32-bit), Windows 8 Pro (32-bit), Windows 8 Enterprise (32-bit), Windows 8 Enterprise N (32-bit), Windows 8 Basic (64-bit), Windows 8 Pro (64-bit), Windows 8 Enterprise (64-bit), Windows 8 Enterprise N (64-bit), Windows 8.1 (64-bit) OS X 10.7 Lion, OS X 10.8 Mountain Lion, OS X 10.9 Mavericks Mobile Operating Systems: iOS, Android, Windows 8 RT Other Operating Systems: Debian, Fedora, HPUX 11 and Solaris 8/9, Linux, Red Hat Enterprise Linux 5.0, SUSE Linux, Ubuntu
Display
Display	8" SVGA 800 x 600 resolution capacitive-touch display with gesture support
Dimensions and weight
Weight	113.7 lb (51.6 kg)
Dimensions (W x D x H)	29 x 25.3 x 22.4 in (737 x 643 x 570 mm)
Dimensions, max (W x D x H)	39.2 x 25.3 x 23.6 in (with multipurpose tray and output bin fully extended)
Package weight	137.5 lb
Power and operating requirements
Power supply	110-volt input voltage: 100 to 127 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz), 12 A; 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 2 Hz), 6 A (Not dual voltage, power supply varies by part number with # Option code identifier)
Power consumption	970 watts (Printing), 6.5 watts (Sleep), 0.1 watts (Manual Off), 1.60 watts (Auto-Off/Wake on LAN), 0.1 watts (Auto-Off/Manual On)
Acoustic power emissions	7.4 B(A)
Operating temperature range	59 to 80.6°F
Recommended Operating humidity range	10 to 80% RH
What's included
What's in the box	HP LaserJet Enterprise MFP M630h; Black print cartridge; CD(s) with software and documentation; Getting Started Guide; Power cord
Cable included?	No, please purchase USB cable separately.
Software included?	Windows: HP Installer/Uninstaller, HP PCL 6 print driver, DXP (Device Experience), HP Help & Learn Center, HP Send Fax, HP Update, Product Registration Assist, HP Web Services Assist (HP Connected), .NET 3.5 SP1 (only installed for older Windows operating systems that lack), Setup Scan To Folder and Email; Mac: Welcome Screen (Redirects users to HP.com, or OS App Source for LaserJet Software)
Warranty	One-year, onsite warranty

Series at a glance

HP LaserJet Enterprise MFP M630 Series Comparison
Model	MFP M630h	MFP M630f	Flow MFP M630z
Part number	J7X28A	B3G85A	BG386A
100-sheet multipurpose tray, 500-sheet tray 2	Yes	Yes	Yes
500-sheet tray and cabinet with stand¹	Optional	Yes
2 x 500-sheet and 1,500-sheet paper feeders with stand¹	Optional		Yes
500-sheet input tray¹	Optional
900-sheet, 3-bin stapling mailbox	Optional	Optional	Yes
HP LaserJet envelope feeder	Optional	Optional	Optional
Fax	Optional	Yes	Yes
HP High-Performance Secure Hard Disk	Yes	Yes	Yes
100-page ADF with single-pass, two-sided scanning	Yes	Yes	Yes (Plus HP EveryPage)
Advanced workflow capabilities	Not available	Not available	Yes
Touch-to-print/authenticate and wireless direct	Optional	Optional	Optional

Documentation

HP LaserJet Enterprise MFP M630 series Datasheet (PDF)
