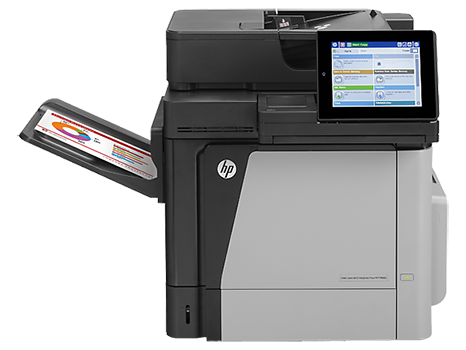

HP Color LaserJet Enterprise MFP M680dn CZ248A#BGJ
Use this high-performance color MFP to stay productive in the office and on the go

HP Color LaserJet Enterprise MFP M680dn high-performance color multifunction printer

Enterprise High-Volume Color Printing

Sorry, this product is no longer available, please contact us for a replacement.


Overview

  • Legal (8.5 in x 14 in) (original)
  • up to 42 ppm (copying)
  • up to 45 ppm (printing)
  • 600 sheets
  • USB 2.0
  • Gigabit LAN
  • USB host

Tackle high-volume jobs with a high-performance color MFP. Print and copy on letter and A4. Enhanced scanning features and an 8-inch color touchscreen smooth workflows. Mobile printing options help you stay productive on the go.2

Make workflow fly

  • Get more done, faster. Scan two-sided documents in a single pass. No missed pages, no flipping pages by hand.
  • Preview and edit scans, adjust images, and launch standard processes—all at the 8-inch color touchscreen.
  • Reload less often—tackle high-volume print jobs with a paper capacity of up to 3100 sheets.3
  • Scan and send digital files directly to email, network folders, or the cloud.2

Mobilize business printing

  • Print without wires—or a network. Get easy access to the MFP through optional wireless direct printing.4
  • Mobile printing at a touch—enable touch-to-print convenience from mobile devices.5
  • Easily print from smartphones, tablets, and notebooks at work, home, or on the go; Mopria-certified.1
  • Pull print jobs from your pocket—walk up and print or scan from your USB drive.

Ready, set, grow

  • Depend on an MFP that can expand with your business, whenever solutions advance.
  • Take the guesswork out of fleet management—centrally monitor and control your MFPs with HP Web Jetadmin.6
  • Be confident that sensitive business data is protected with advanced security and an encrypted hard disk.

Loaded for productivity

  • Reload less often—tackle high-volume printing with a paper capacity of up to 3100 sheets.3
  • Reduce employee time at the MFP, using the automatic document feeder.
  • Get exceptional value from Original HP high-capacity ink cartridges.
  • Save time with automatic job sorting and finishing, using the optional 3-bin stapling mailbox.

Eco Highlights

  • Only the power you need—help save energy with HP Auto-On/Auto-Off Technology.eco01
  • Conserve resources—without sacrificing performance—using an ENERGY STAR® qualified MFP.
  • Print on a variety of paper types—even office papers as light as 60 GSM.

eco01 HP Auto-On/Auto-Off Technology capabilities are subject to printer and settings; may require a firmware upgrade. 1 Local printing requires mobile device and printer to be on the same wireless network or have a direct wireless connection. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. App or software and HP ePrint account registration may also be required. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area. See hp.com/go/businessmobileprinting for more details. Mopria-certified devices adhere to a common standard that enables easy mobile printing with little or no setup. 2 Scanning to SharePoint and/or the cloud requires an Internet connection to the printer. Services may require registration. Availability varies by country, language, and agreements. For details, see http://www.hp.com/go/mfp 3 Maximum paper capacity requires purchase of additional paper trays for the HP LaserJet Enterprise M680f and M680dn. 4 Wireless direct printing requires purchase of optional module. Mobile device may require an app or driver. Wireless performance is dependent on physical environment and distance from the printer. For details, see http://www.hp.com/go/businessmobileprinting 5 Touch-to-print capability requires purchase of optional module. Mobile device must support near-field communications–enabled printing. For a list of supported devices, see http://www.hp.com/go/businessmobileprinting 6 HP Web Jetadmin is free and available for download at http://www.hp.com/go/webjetadmin 7 Three-bin stapling mailbox requires additional purchase for the HP Color LaserJet Enterprise MFP M680dn and HP Color LaserJet Enterprise MFP M680f. 8 Fax functionality not available on the HP Color LaserJet Enterprise MFP M680dn. 9 Keyboard is available on the HP Color LaserJet Enterprise MFP M680z only. 10 HP EveryPage is available on the HP Color LaserJet Enterprise MFP M680z only. 11 An FCC Class A emissions compliant device meets the less stringent (higher) levels of emissions allowed by the FCC for a product operation in a commercial environment. An FCC class A device cannot be marketed for use in a residential environment and an FCC class A device should not be purchased for use in a residential environment due to the increased risk of interference to radio communications.

Specifications

HP Color LaserJet Enterprise MFP M680dn Specifications
Functions
All-in-one functions Print, Copy, Scan, Digital Send, Scan-to-Easy Access USB
Multitasking supported Yes
Printing specifications
Mobile Printing Capability HP ePrint, Apple AirPrint™, Mopria-certified, Mobile Apps, optional Touch to Print, optional Wireless Direct printing
Print speed black (normal, letter) Up to 45 ppm
Print speed color (normal, letter) Up to 45 ppm
Print resolution, color Up to 1200 x 1200 dpi
Print resolution, black Up to 1200 x 1200 dpi
First page out (black) As fast as 10.5 sec
First page out (color) As fast as 10.5 sec
Monthly duty cycle Up to 175,000 pages (printer)
Recommended monthly print volume 3000 to 17,000
Print technology Laser
Paper Handling
Paper handling standard, input 100-sheet multipurpose tray, 500-sheet input tray 2, 100-sheet automatic document feeder (ADF), automatic two-sided printing
Paper handling optional, input Optional 500-sheet tray 3 with storage cabinet, optional 2 x 500-sheet trays and 1500-sheet HCI with stand
Paper handling standard, output 500-sheet output bin
Paper handling optional, output Optional 900-sheet, 3-bin stapling mailbox
Envelope capacity Up to 10 envelopes
Document finishing Sheetfed
Duplex printing Automatic
Media sizes, standard Letter; legal; executive; 8.5 x 13 in
Media sizes, custom Tray 1: 4.0 x 6.0 to 8.5 x 14 in; Tray 2: 5.8 x 8.3 to 8.5 x 14 in
Media weight Tray 1: 16 to 58 lb bond (plain), 28 to 58 lb bond (glossy), 16 to 24 lb (envelopes); Trays 2, 3, 4, 5: 16 to 32 lb bond (plain), 28 to 58 lb bond (glossy)
Media types Paper (plain, light, bond, recycled, mid-weight, heavy, mid-weight glossy, heavy glossy, extra heavy, extra heavy glossy, cardstock, card glossy), color transparency, labels, letterhead, envelope, preprinted, prepunched, colored, rough, opaque film, user-defined
Additional Specifications
Processor speed 800 Mhz
Memory, standard 2 GB (system memory)
Memory, maximum 2 GB (system memory)
Print languages, standard HP PCL 6, HP PCL 5, HP postscript level 3 emulation, PDF, PDF and AirPrint (URF and PDF)
Scanner specifications
Scanner type Flatbed, ADF
Scan resolution, optical Up to 600 dpi
Bit depth 24-bit
Scan size, maximum (flatbed) 8.5 x 14 in
Scan size, maximum (ADF) 8.5 x 14 in
Scanner duplex feeder Yes, single pass duplexing ADF
Digital sending specifications
Digital sending features Scan to e-mail; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL
Supported file formats Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht)
Copier specifications
Maximum number of copies Up to 9999 copies
Copy reduce/enlarge settings 25 to 400%
Copy resolution, black Up to 600 x 600 dpi (Flatbed), 300 x 600 dpi (ADF)
Connectivity
HP ePrint capability Yes
Connectivity, optional HP Jetdirect 2700w USB Wireless Print Server J8026A; HP Jetdirect 2800w NFC & Wireless Direct J8029A; HP Jetdirect ew2500 802.11b/g Wireless Print Server J8021A
Connectivity, standard 1 Hi-Speed device USB 2.0; 2 Host USB 2.0 (for third party connections); 1 Jetlink; 1 Accessory (for Kensington Lock); 1 Gigabit Ethernet 10/100/1000; 1 FIH
Compatible operating systems Windows XP SP3 or greater (32-bit and 64-bit), Windows Vista (32-bit and 64-bit), Windows 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows Server 2003 SP2 or greater (32-bit and 64-bit), Windows Server 2008 (32-bit and 64-bit), Windows Server 2008 R2 (64-bit), Windows Server 2012 (64-bit), OS X 10.6 Snow Leopard, OS X 10.7 Lion, OS X 10.8 Mountain Lion, OS X 10.9 Mavericks
Display
Display 8" (20.3 cm) capacitive-touchscreen, SVGA (800 x 600 resolution), gesture support
Dimensions and weight
Weight 124.3 lb (56.5 kg)
Dimensions (W x D x H) 31.1 x 25 x 23 in (790 x 632 x 585 mm)
Dimensions, max (W x D x H) 45.8 x 34.9 x 33.5 in
Package weight 135.5 lb
Power and operating requirements
Power supply 110-volt input voltage: 110 to 127 VAC (+/- 10%), 60 Hz (+/- 2 Hz), 12 A; 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 2 Hz), 6 A
Power consumption 797 watts (Printing), 83 watts (Ready), 7 watts (Sleep), 0.07 watts (Manual Off), 1.53 (Auto Off/Wake on LAN), 0.07 (Auto Off/Manual On)
Acoustic power emissions 7.1 B(A)
Operating temperature range 62.6 to 77ºF
Recommended operating humidity range 10 to 80% RH
What's included
What's in the box HP Color LaserJet Multifunction Printer; Black, Cyan, Magenta, and Yellow HP Color LaserJet Toner Cartridges (installed); CD with software drivers and documentation; Documentation (Hardware Install Guide); Power cord; HP Jetdirect Gigabit Ethernet Print Server (embedded); 100-sheet multipurpose tray 1; 500-sheet input tray 2; Automatic duplexer (built-in); Encrypted Hard Drive
Cable included No, please purchase USB cable separately
Warranty One-year, onsite warranty
