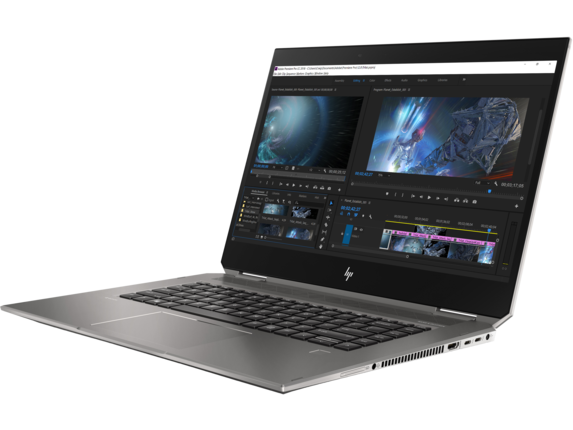

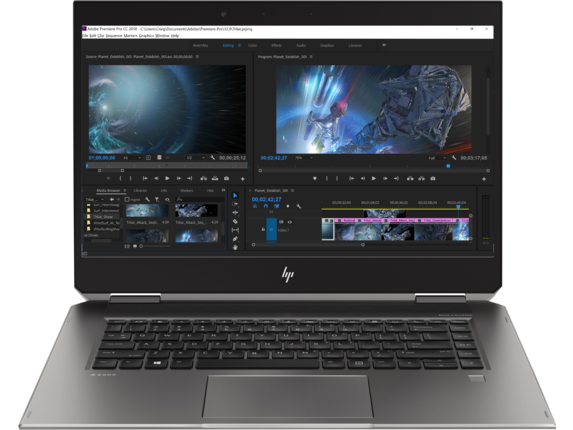

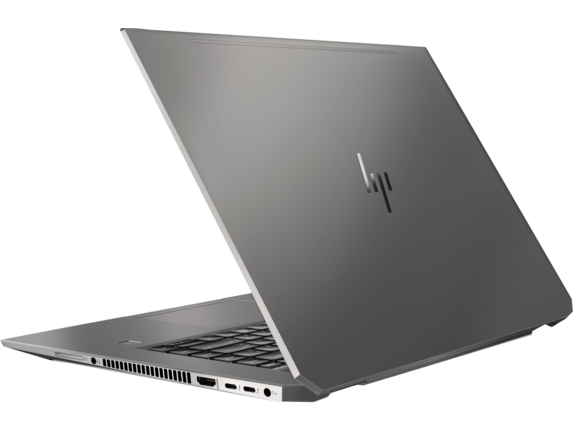

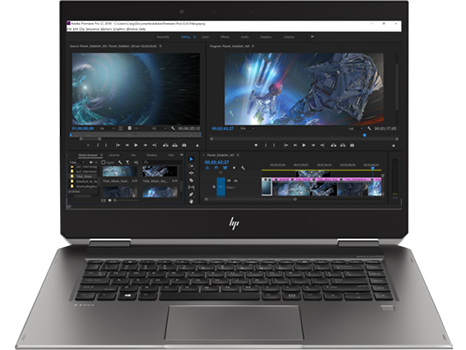

HP ZBook Studio x360 G5 Convertible Workstation
A versatile laptop that gives you the latest convertible design
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Reimagine your creative process with a versatile laptop that gives you the latest convertible design you'll want with the pro-grade performance you need. Showcase your work like never before with five unique modes.
- Windows 10 Pro 64
- 8th Generation Intel Core™ i7 processor
- 16 GB memory; 512 GB SSD storage
- HP DreamColor 15.6" diagonal 4K IPS LED-backlit anti-glare touch screen with Corning Gorilla Glass 4, 600 cd/m², 100% sRGB (3840 x 2160)
- ntegrated Intel UHD Graphics 630 Discrete NVIDIA Quadro P1000 (4 GB GDDR5 dedicated)
Features:
360 degree pro performance
Finally, a convertible laptop designed to tackle large files and run multiple apps with speed and responsiveness. Seamlessly edit and render high-res images without delay, with NVIDIA Quadro P2000 graphics, 64 GB memory and Intel Core™ i9 processors.
Precision-crafted versatility

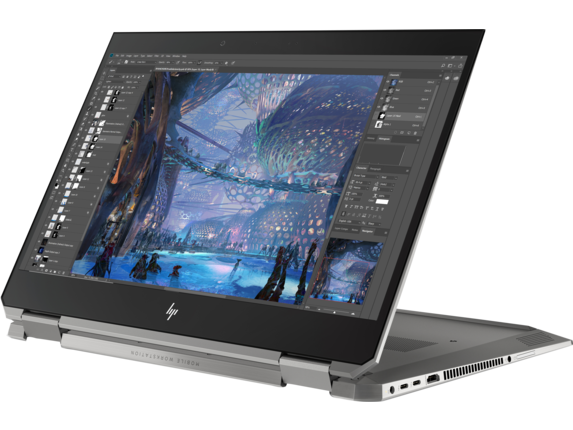

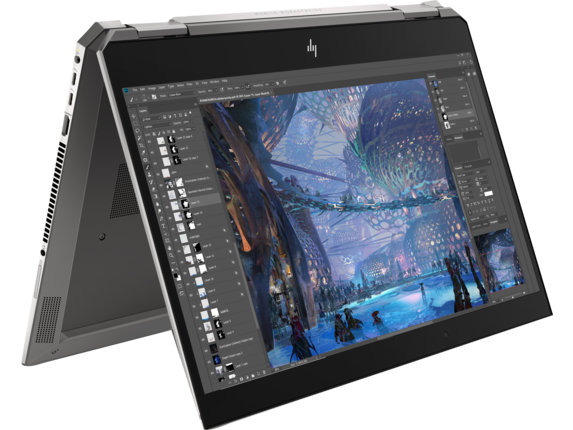

With our innovative 360-degree hinge, you'll get the comfort of a laptop, the convenience of a tablet and the luxury of additional modes to help you showcase your work.
Pixel perfect tools
Achieve remarkable inking precision with 4096 levels of pressure sensitivity and tilt with the Wacom AES pen.
Featuring
- Be productive in any situation. Windows 10 Pro and powerful security, collaboration, and connectivity features from HP help you power through your day on the HP ZBook Studio x360.
- Create on the go with the professional Wacom AES pen featuring 4K pressure sensitive levels, tilt and two customizable buttons.
- Take your work outdoors with the anti-glare touch display and built in ambient light sensor that dims or brightens based on your surroundings.
- Take your work on the road with up to 16 hours of battery life for maximum productivity. When you need it, recharge ultra-fast (50% in just 45 minutes).
- Create seamlessly. Save and access large files locally with up to 4TB local NVMe storage, up to 21 times faster than standard HDD storage and six times faster than SATA SSD.
- Do more at once with next-generation six-core Intel Core™ i9 or Intel Xeon processors designed to handle complex, multi-threaded applications like Adobe Premier Pro.
- Seamlessly edit your designs and render multi-layered files with certified NVIDIA Quadro P2000 graphics, optimized for stability and performance with professional software apps.
- Protect your work with HP Sure View that activates a privacy screen at the touch of a button and RAID 1 that keeps a backup copy of all your files in case you ever need it.
- Experience fast transfer and upload speeds with dual Thunderbolt™ 3 ports. Keep all your devices and peripherals connected with 2 USB 3.0, 1 HDMI and 1 SD card port.
- Host virtual meetings with the HP Collaboration Keyboard, HP World Facing Microphone & optional web cam. Get premium audio with 4 speakers tuned by Bang & Olufsen & a discrete amp.
- Confidently take your work anywhere knowing your HP ZBook Studio x360 was built for 24 x 7 x 365 workloads and passed 14 rigorous military standard tests like shock, drop and dust.
- Accidents happen - which is why we designed our minor spill-resistant full-sized chiclet keyboard with a chemically strengthened glass cover to help prevent wear and tear.
Specifications:
HP ZBook Studio x360 G5 Convertible Workstation Specifications | |
---|---|
Available Operating system | Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home 64 Windows 10 Pro for Workstations 64 Red Hat Enterprise Linux 7 - Web support only Ubuntu 16.04.3 LTS - Web support only FreeDOS 2.0 |
Processor family | Intel Xeon processor (E-2176M, E- 2186M); 8th Generation Intel Core™ i9 processor (i9-8950HK); 8th Generation Intel Core™ i7 processor (i7- 8750H, i7-8850H); 8th Generation Intel Core™ i5 processor (i5-8300H, i5-8400H) |
Available Processors | Intel Xeon E 2186M vPro™ with Intel UHD Graphics P630 (2.9 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Xeon E 2176M vPro™ with Intel UHD Graphics P630 (2.7 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i9 8950HK with Intel UHD Graphics 630 (2.9 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB cache, 6 cores) Intel Core™ i7 8850H vPro™ with Intel UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i7-8750H with Intel UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, 6 cores) Intel Core™ i5 8400H vPro™ with Intel UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) Intel Core™ i5-8300H with Intel UHD Graphics 630 (2.3 GHz base frequency, up to 4.0 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) |
Maximum memory | 64 GB DDR4-2667 non-ECC SDRAM; 32 GB DDR4-2667 ECC SDRAM; 32 GB DDR4-2667 non-ECC SDRAM Transfer rates up to 2667 MT/s. |
Memory slots | 2 SODIMM |
Internal storage | 256 GB up to 1 TB SATA SSD 256 GB M.2 SATA SED SSD 256 GB up to 2 TB PCIe NVMe™ M.2 SSD 256 GB up to 512 GB PCIe NVMe™ M.2 SED SSD 2 x 1 TB up to 2 x 2 TB PCIe NVMe™ M.2 SSD |
Display | HP Sure View 15.6" diagonal FHD IPS eDP + PSR LED-backlit touch screen with Corning Gorilla Glass 4, 650 cd/m² (1920 x 1080) HP DreamColor 15.6" diagonal 4K IPS LED-backlit touch screen with Corning Gorilla Glass 4, 600 cd/ m², 100% AdobeRGB (3840 x 2160) HP DreamColor 15.6" diagonal 4K IPS LED-backlit anti-glare touch screen with Corning Gorilla Glass 4, 600 cd/ m², 100% AdobeRGB (3840 x 2160) 15.6" diagonal FHD IPS eDP + PSR LED-backlit touch screen with Corning Gorilla Glass 4 and ambient light sensor, 400 cd/m² (1920 x 1080) 15.6" diagonal 4K IPS eDP + PSR LED-backlit touch screen with Corning Gorilla Glass 4 and ambient light sensor, 400 cd/m² (3840 x 2160) |
Available Graphics | Integrated: Intel UHD Graphics 630; Intel UHD Graphics P630 Discrete: NVIDIA Quadro P1000 (4 GB GDDR5 dedicated); NVIDIA Quadro P2000 (4 GB GDDR5 dedicated) (Intel UHD Graphics 630 integrated on Core™ i7, Core™ i5 and Core™ i9 processors. Intel UHD Graphics P630 integrated on Xeon processors.) |
Audio | HP tuned Bang & Olufsen, quad stereo speakers, HP World Facing Microphone supporting HP Noise Reduction Software, keyboard functions keys for volume up and down, combo microphone/headphone jack, HD audio, HP Clear Sound Amp |
Communications | WLAN: Intel Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth 5.0 Combo Intel Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth 5.0 Combo, non-vPro™; WWAN: HP lt4132 LTE/HSPA+ 4G Mobile Broadband Module Intel XMM™ 7360 LTE Advanced (Optional Near Field Communication (NFC) module) |
Expansion slots | 1 UHS-II SD card reader (SD supports next generation secure digital and is backward compatible to SDHC, SDXC) |

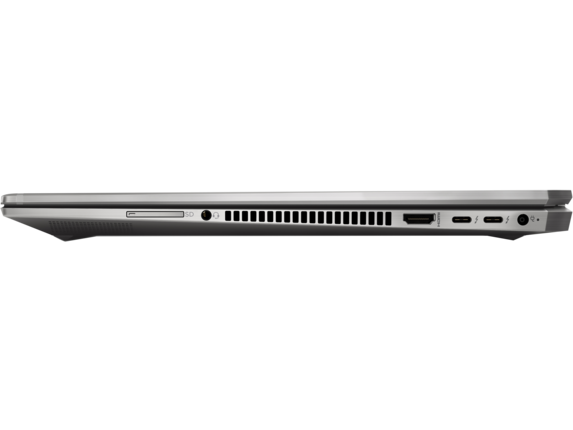

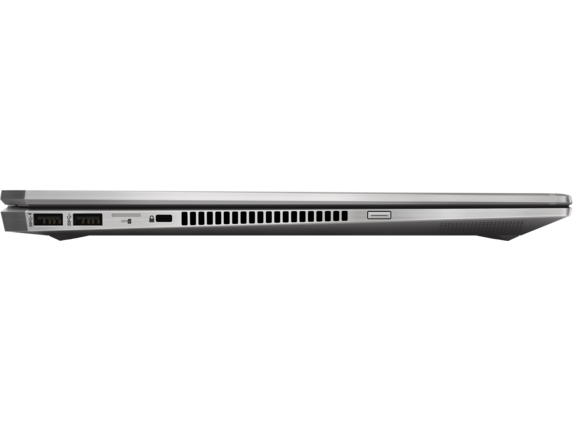

Ports and Connectors | Left side: 1 USB 3.0; 1 USB 3.0 (charging) Right side: 1 HDMI 2.0; 1 headphone/microphone combo; 1 power connector; 2 USB 3.1 Type-C™ Thunderbolt™ 3 (DisplayPort™ 1.3) |
Input devices | HP Collaboration Keyboard, full-size, spill-resistant, backlit, with drain and DuraKeys, clickpad with image sensor and glass surface, multi-touch gestures and taps enabled; Image sensor touchpad with on/off button, two-way scroll, gestures, three buttons; HP ZBook x360 Pen |
Camera | HP Privacy HD IR Camera 720p, face authentication with Windows Hello |
Available Software | Bing search for IE11; Buy Office; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HP Noise Cancellation Software; HP Performance Advisor; HP Recovery Manager; HP Remote Graphics Software; HP Support Assistant; HP Velocity; Skype for Business Certified; HP LAN-WLAN Protection; HP JumpStart; HP Client Security Suite Gen4 |
Security management | Absolute persistence module; Common Criteria EAL4+ Augmented Certified Discrete TPM 2.0 Embedded Security Chip; DriveLock and Automatic DriveLock; HP Device Access Manager; HP FingerPrint Sensor; HP Password Manager; HP Power On Authentication; HP Security Manager; Pre-boot authentication; HP Sure Click; Measured Boot; HP BIOS Config Utility (BCU); HP Client Catalog; HP Driver Packs; HP System Software Manager (SSM); HP Manageability Integration Kit Gen2; HP BIOSphere with Sure Start Gen4; HP Secure Disk Erase; HP Host Based Mac Address; Windows Defender |
Power | 150 W Slim Smart external AC power adapter |
Battery type | HP Long Life 6-cell, 95.6 Wh Li-ion polymer |
Dimensions | 14.17 x 10 x 0.35 to 0.74 in (front to rear) |
Weight | Starting at 4.9 lb |
Environmental | Low halogen |
Energy efficiency compliance | ENERGY STAR certified and EPEAT registered configurations available |
Warranty | 3 year or 1 year limited warranty options available, depending on country. Batteries have the same 1 year or 3 year limited warranty as the platform. 24/7 operation will not void the HP warranty. Optional HP Care Pack Services are extended service contracts which go beyond your standard limited warranties. |
Documentation:
Download the HP ZBook Studio x360 G5 Convertible Workstation Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
