HP ZBook 14u G5 Mobile Workstation
Remarkable performance in a thin and light design

Overview:

Finally, workstation-class power meets thin and light design for executives on-the-go. With advanced features like quad core Intel Core™ processors and 3D professional graphics, you can view and edit high resolution files from anywhere.

Remarkable performance in a thin and light design

• Windows 10 Pro 64
• 8th Generation Intel Core™ i7 processor
• 8 GB memory; 256 GB SSD storage
• HP Sure View Integrated Privacy Screen 14" diagonal FHD IPS eDP anti-glare LED-backlit touch screen (1920 x 1080)
• Discrete AMD Radeon™ Pro WX 3100 Graphics (2 GB GDDR5 dedicated)
• 1 smart card reader

Features:

Our thinnest and lightest mobile workstation

Our redesigned ZBook has been customized for road warriors with a taste for sophistication at just 3.27 pounds and 17.9 mm thin. Designed with metallic finishes and an optional 4K, touch display, you'll get a premium experience that travels light.

Premium power. Pure performance.

Power through your day using everything from spreadsheets to CAD with blazing fast HP Z Turbo Drive high speed storage and certified AMD Radeon™ Pro graphics.

Advanced protection from the inside out.

Industry-leading security features help keep your files and privacy safe while traveling. Optional HP Sure View guards your screen from prying eyes and HP Sure Click[5] protects web browsing with hardware-enforced security.

Featuring

• Be productive in any situation with the power and security of Windows 10 Pro, enhanced with best-in-class collaboration and connectivity features from HP.
• Work with professional, certified discrete graphics for rich visual immersion and real-time visualization of complex, multi-layered files and projects.
• Work at the speed of your ideas with the premium performance of the latest quad core Intel Core™ processors, and up to 4.2 GHz of turbo boost at your fingertips.
• HP mobile workstations undergo dozens of tests for software certification and optimized performance with the industry’s leading software providers like Autodesk, Adobe, and more.
• Work seamlessly on airplanes, trains or in cafes with a stunning optional 4K display, with antiglare technology that improves the outdoor and direct light experience.
• Easily connect and collaborate with Skype and other conferencing tools. Conference key shortcuts include start/end call, view calendar, mute, and screen sharing.
• Designed to handle the toughest workloads, wherever you may roam. Tested and passed for altitude, shock, drops, explosive atmospheres, extreme temperatures, sand, humidity and more.
• Work confidently from anywhere with up to 2TB of local PCIe storage that’s up to 6x faster than SATA SSD, and up to 21x faster than traditional HDD storage.
• Industry-leading audio by Bang & Olufsen and a discrete amp offer premium sound quality. Plus, an external mic for conference calls and muting background noise.
• No more taping over your Webcam. The privacy slider ensures you’re in control of who and what the camera sees.
• The HP ZBook Dock features Thunderbolt™ 3 connectivity for lightning-fast transfers, and the power to run dual 4K displays for maximum visual immersion.
• Enjoy peace of mind knowing you have up to 14 hours of battery life, with ultra-fast recharge for maximum productivity. Recharge to 50% capacity in just 30 minutes.

Specifications:

HP ZBook 14u G5 Mobile Workstation Specifications
Available Operating system	Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home 64 FreeDOS 2.0
Processor family	7th Generation Intel Core™ i5 processor (i5-7200U, i5-7300U); 7th Generation Intel Core™ i7 processor (i7-7500U, i7-7600U); 8th Generation Intel Core™ i7 processor (i7-8650U, i7-8550U); 8th Generation Intel Core™ i5 processor (i5-8350U, i5-8250U)
Available Processors	Intel Core™ i7-8650U with Intel UHD Graphics 620 (1.9 GHz base frequency, up to 4.2 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) Intel Core™ i7-8550U with Intel UHD Graphics 620 (1.8 GHz base frequency, up to 4 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores) Intel Core™ i7-7600U with Intel HD Graphics 620 (2.8 GHz base frequency, up to 3.9 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores) Intel Core™ i7-7500U with Intel HD Graphics 620 (2.7 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores) Intel Core™ i5-8350U with Intel UHD Graphics 620 (1.7 GHz base frequency, up to 3.6 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores) Intel Core™ i5-8250U with Intel UHD Graphics 620 (1.6 GHz base frequency, up to 3.4 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores) Intel Core™ i5-7300U with Intel HD Graphics 620 (2.6 GHz base frequency, up to 3.5 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores) Intel Core™ i5-7200U with Intel HD Graphics 620 (2.5 GHz base frequency, up to 3.1 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores)
Maximum memory	32 GB DDR4-2400 non-ECC SDRAM Transfer rates up to 2133 MT/s.
Memory slots	2 SODIMM
Internal storage	up to 128 GB M.2 SATA SSD up to 512 GB M.2 SATA FIPS 140-2 SED SSD 256 GB up to 512 GB PCIe NVMe™ M.2 SED SSD 256 GB up to 2 TB PCIe NVMe™ M.2 SSD 256 GB up to 1 TB HP Z Turbo Drive G2 PCIe NVMe™ SSD
Display	14” diagonal FHD IPS eDP anti-glare, 67% sRGB at 220 nits (1920x1080); 14” diagonal FHD IPS eDP + PSR anti-glare, 100% sRGB at 400 nits with ambient light sensor (1920x1080); 14” diagonal UHD IPS eDP + PSR anti-glare, 100% sRGB at 400 nits with ambient light sensor (3840x 2160); 14” diagonal FHD IPS eDP touch screen with Corning Gorilla Glass 3, 67% sRGB at 220 nits (1920x1080); HP SureView Integrated Privacy Display 14” diagonal FHD IPS eDP + PSR anti-glare, 100% sRGB at 700 nits (1920x1080); HP SureView Integrated Privacy Display 14” diagonal FHD IPS eDP + PSR touch screen with Corning Gorilla Glass 3, 100% sRGB at 700 nits (1920x1080)
Available Graphics	Integrated: Intel HD Graphics 620; Intel UHD Graphics 620 Discrete: AMD Radeon™ Pro WX 3100 Graphics (2 GB GDDR5 dedicated)
Audio	HP tuned Bang & Olufsen, dual stereo speakers, HP World Facing Microphone dual array digital microphone, functions keys for volume up and down, combo microphone/headphone jack, HD audio
Keyboard	HP Collaboration Keyboard, spill-resistant, backlit and function key control; HP Dual Point spill-resistant Collaboration Keyboard
Pointing device	Image sensor touchpad; Pointstick with two additional pointstick buttons; Clickpad with multi-touch gesture support; Dual pointstick
Communications	LAN: Integrated Intel I219-LM GbE, vPro™; Integrated Intel I219-V GbE, non-vPro™; WLAN: Intel Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 4.2 Combo, vPro™; Intel Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 4.2 Combo, non-vPro™ ; WWAN: HP lt4132 LTE/HSPA+ 4G Mobile Broadband Module; Intel XMM™ 7360 LTE Advanced (Optional Near Field Communication (NFC) module)
Expansion slots	1 smart card reader

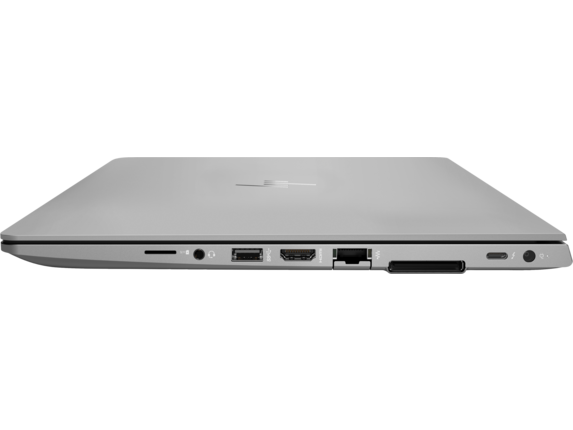

Ports and Connectors	Left side: 1 USB 3.0 (charging) Right side: 1 HDMI 1.4; 1 headphone/microphone combo; 1 power connector; 1 RJ-45; Ultra Slim Dock Connector; 1 USB Type-C™ (Thunderbolt™ 3, USB 3.1)
Camera	720p HD webcam with IR; 720p HD webcam
Available Software	Bing search for IE11; Buy Office; CyberLink Power Media Player; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HP Noise Cancellation Software; HP Performance Advisor; HP Recovery Manager; HP Remote Graphics Software; HP Secure Erase; HP Support Assistant; HP Velocity; Skype for Business Certified; HP LAN-WLAN Protection; HP JumpStart; HP Mobile Connect Pro; Native Miracast support; HP SureConnect; Windows Defender
Security management	Absolute persistence module; DriveLock and Automatic DriveLock; HP BIOSphere with Sure Start Gen3; HP Client Security Suite Gen 3; HP Device Access Manager; HP FingerPrint Sensor; HP Power On Authentication; HP Security Manager; Security lock slot; Master Boot Record security; Pre-boot authentication
Battery type	HP Long Life 3-cell, 50 Wh Li-ion polymer
Battery life	Up to 10 hours
Dimensions	12.84 x 9.22 x 0.71 in; 32.6 x 23.43 x 1.79 cm
Weight	Starting at 3.27 lb; Starting at 1.48 kg (Weight varies by configuration and components.)
Environmental	Low halogen
Energy efficiency compliance	ENERGY STAR certified and EPEAT Gold registered configurations available
Warranty	3 year or 1 year limited warranty options available, depending on country. Batteries have the same 1 year or 3 year limited warranty as the platform. 24/7 operation will not void the HP warranty. Optional HP Care Pack Services are extended service contracts which go beyond your standard limited warranties.

Image Gallery:

Documentation:

Download the HP ZBook 14u G5 Mobile Workstation Datasheet (.PDF)
